Rapid expansion of the PIR sensor market and the challenges in implementation
-
Empowering Energy Efficiency and
Decarbonization – The Glowing
Promise of PIR SensorsWith rising global demand for electricity and an uncertain energy supply chain, energy-efficient solutions have become essential. In product development, interest in pyroelectric infrared sensors is also growing due to their ability to improve the energy efficiency of equipment.
-
However, it can be demanding for
product developers…Traditionally, pyroelectric infrared sensors faced adoption hurdles due to labor-intensive aspects such as component integration and circuit design complexity.
-
Concerns over false alarm and
sensor failuresConventional pyroelectric infrared sensors have technical issues such as false alarm, which can cause user dissatisfaction.
PaPIRs solves challenges for product designers with its “compact size, high sensitivity, and high reliability.”
PaPIRs reduces circuit design effort and significantly shortens development time through its lens-integrated, ASIC-embedded, compact, low-power design. Its battery-powered operation also enables easy retrofitting into existing devices. Cumulative shipments exceeding 100 million units demonstrate why it remains the preferred choice.

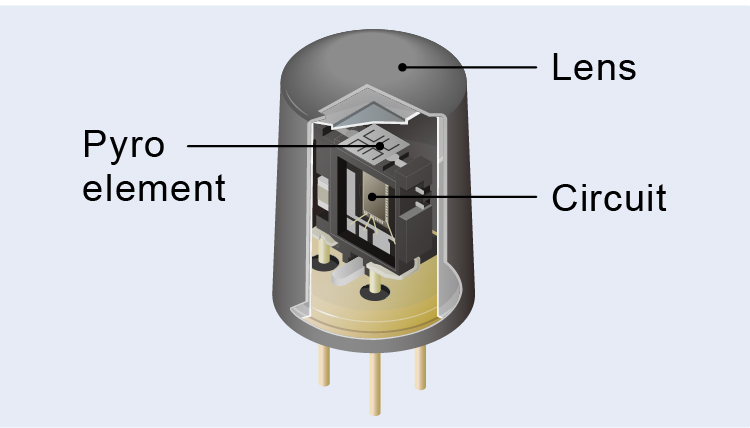

Integrated lens structure simplifies design and assembly
The lens, element, and circuit are integrated into a single unit, eliminating the need for optical design and assembly. This reduces design man-hours and procurement parts.
Integrated lens structure simplifies design and assembly

The lens, element, and circuit are integrated into a single unit, eliminating the need for optical design and assembly. This reduces design man-hours and procurement parts.
- Expected benefits
-
- Reduced effort in design and component assembly
- Can be installed with a modular approach, reducing development time

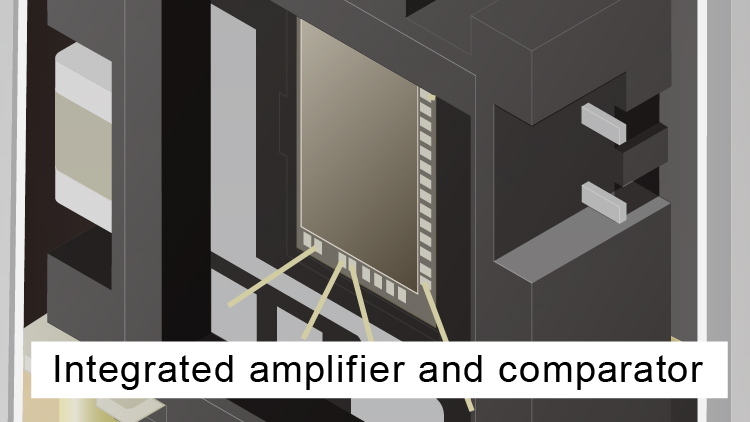

ASIC integration enables reduced circuit design effort and high reliability
Features an in-house developed ASIC incorporating an amplifier and comparator. Eliminates the need for external circuitry while suppressing malfunctions and noise.
ASIC integration enables reduced circuit design effort and high reliability

Features an in-house developed ASIC incorporating an amplifier and comparator. Eliminates the need for external circuitry while suppressing malfunctions and noise.
- Expected benefits
-
- Reduced external circuitry leads to fewer components and fewer design errors.
- No noise design required, reducing EMC countermeasure costs

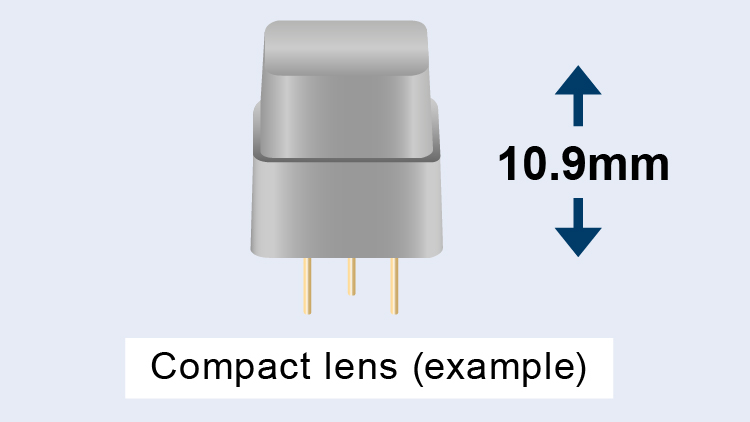

Compact size and low power consumption enable battery use and flexible design
The lineup also offers ultra-low power models with a standby current of 1 μA, as well as compact lens options for tight installation spaces.
Compact size and low power consumption enable battery use and flexible design

The lineup also offers ultra-low power models with a standby current of 1 μA, as well as compact lens options for tight installation spaces.
- Expected benefits
-
- Enables installation in locations with limited access to AC power
- When combined with a wireless module, it also supports battery-powered devices, eliminating the need for wiring.
- Compact sensor housing makes it ideal for integration into high-visibility equipment, such as digital signage and control panels
PaPIRs+ Debuts — Reliable Detection with Fewer false alarm
PaPIRs+ significantly improves infrared absorption efficiency by enlarging the pyroelectric element and applying a black surface treatment, doubling the sensitivity compared to conventional models.
Compared to conventional high-sensitivity models (such as EKMC46*), it is less susceptible to noise, which significantly reduces the risk of false alarm.
This model is ideal for those currently using or considering PaPIRs who wish to detect micro-movements more reliably or reduce false alarms. It is also recommended for users of other sensor technologies seeking a balance between detection accuracy and cost.
PaPIRs+ is a next-generation pyroelectric infrared sensor that detects even the slightest human movements with greater stability and accuracy.

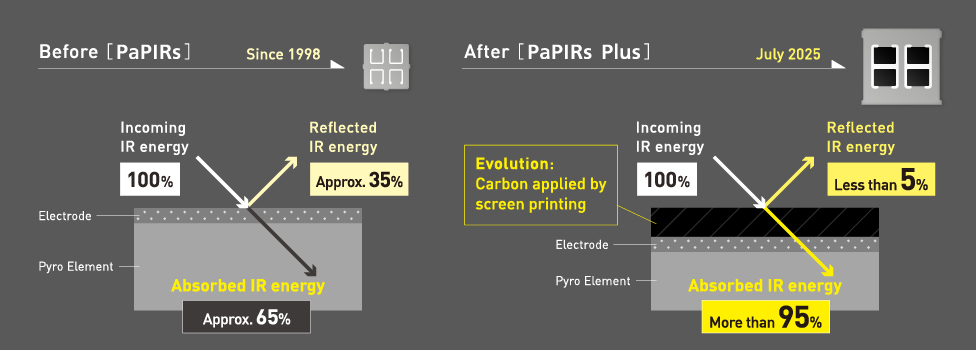

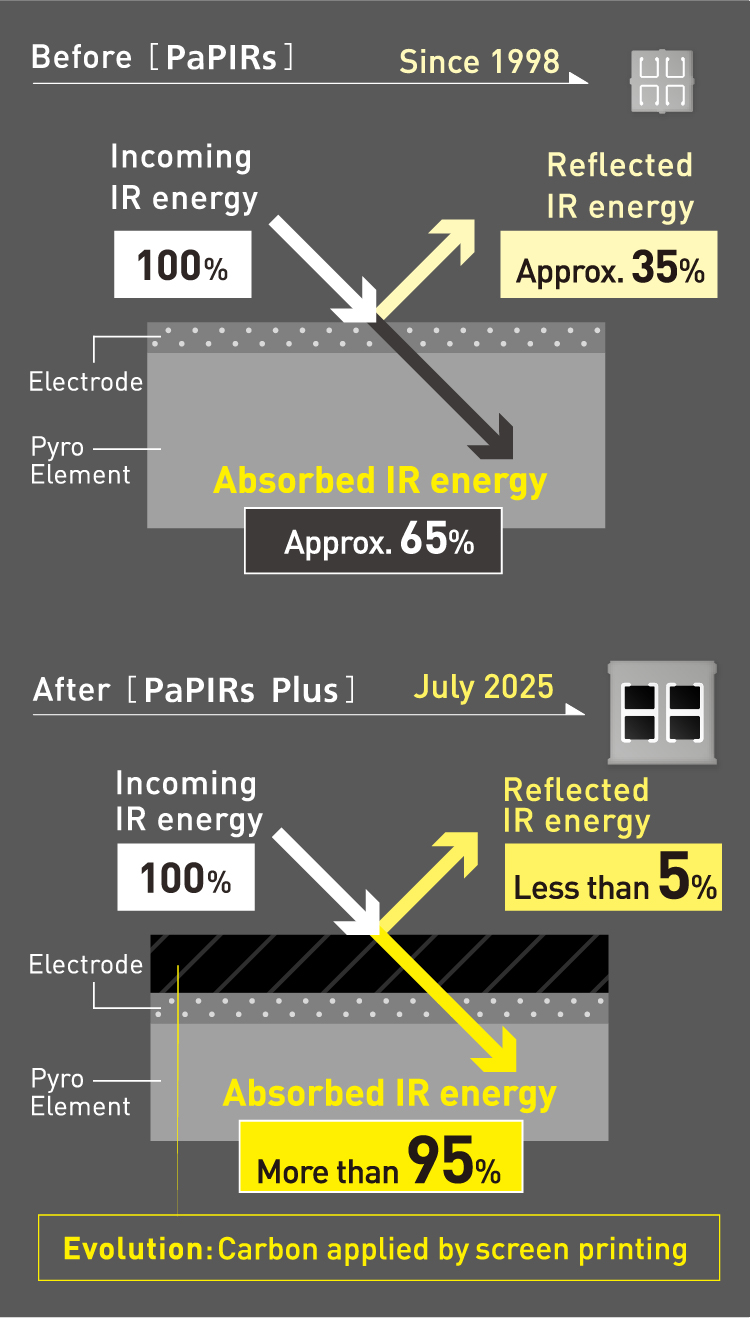

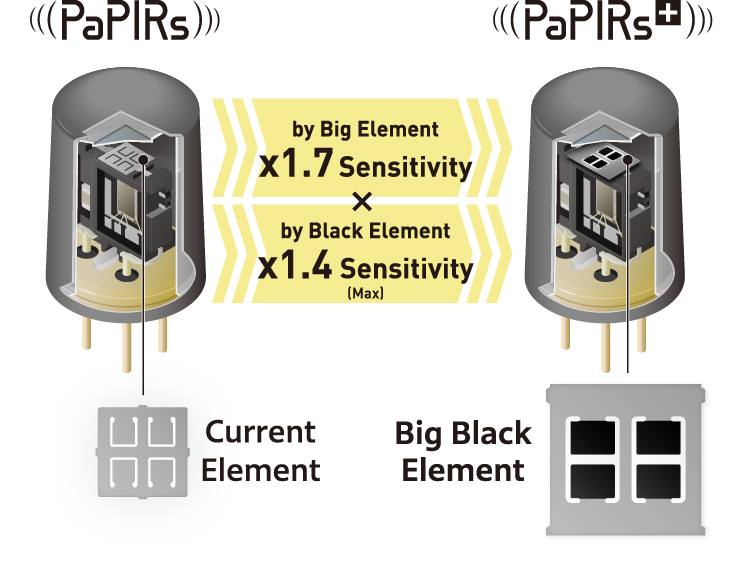

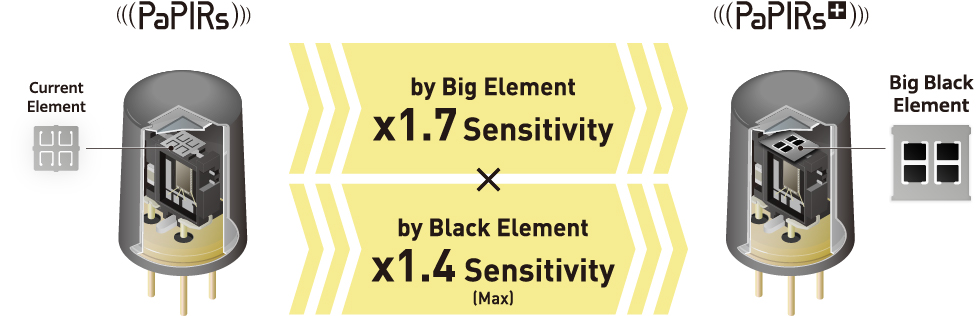

Big black pyro element doubles the sensitivity
Special carbon absorbs energy efficiently
Three key Improvements in PaPIRs+
-

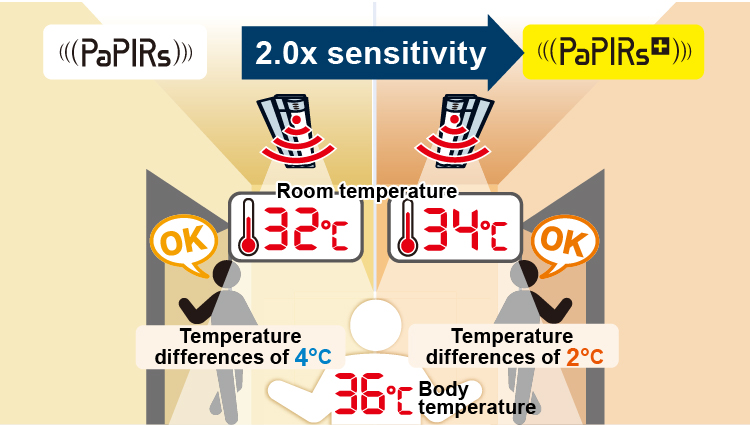

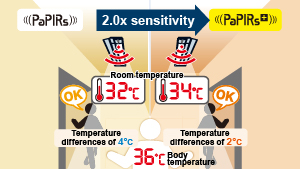

Detectable even at a 2°C
temperature difference.
Micro-motion detection capability
has been further enhanced.The detection sensitivity, which previously required a temperature difference of 4°C or more, has been improved to just 2°C with PaPIRs+. This makes it easier to detect even slight temperature differences, ensuring reliable response even during very slight movements or near-still states.
Note: Compared at the same sensing range
-

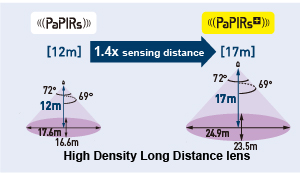

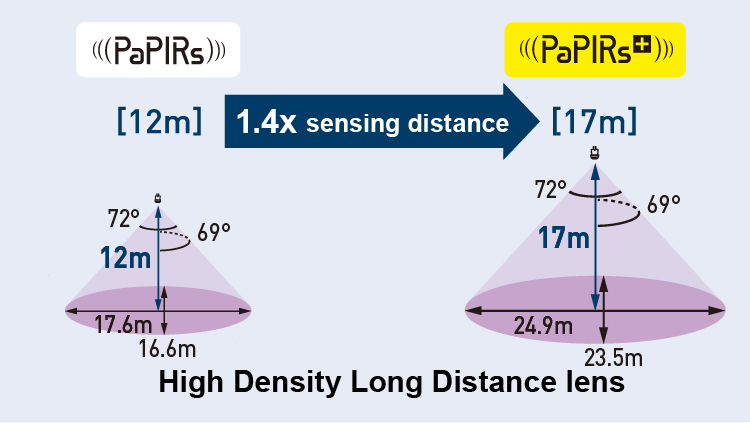

Detection range expanded by approximately 1.4 times.
Covers a wider area.Enhanced sensitivity and improved infrared absorption efficiency extend the detection range to approximately 1.4 times that of conventional models. This enables easier detection of movement in previously unreachable areas, significantly improving performance in larger spaces.
Note: Compared at the same temperature difference
-

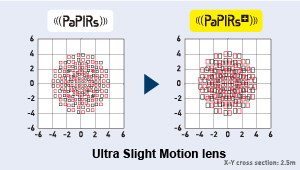

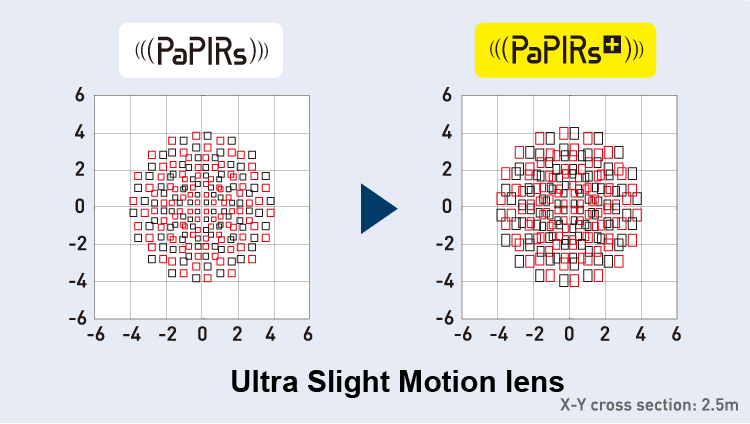

Reduce false alarm in high-density detection areas.
Ensure noise-resistant, stable sensing.Enlarging the pyroelectric element and optimizing the design increase the density in the detection zone. Compared to conventional high-sensitivity models (ex. EKMC46*), PaPIRs+ is less susceptible to noise, which significantly reduces false alarm.
Note: Compared in the same environment
Examples of Recommended Usage
- AMN (NaPiOn) Series
- EKMB (WL) Series
- EKMC (VZ) Series
- PaPIRs+ models
Control lighting and air conditioning based on motion detection in indoor spaces


- AMN (NaPiOn) Series
- EKMB (WL) Series
- EKMC (VZ) Series
- PaPIRs+ models
Use sensors to detect intrusions in homes, retail stores, warehouses, and other locations


- AMN (NaPiOn) Series
- EKMB (WL) Series
- EKMC (VZ) Series
- PaPIRs+ models
Use sensor data effectively in elderly care and more


- AMN (NaPiOn) Series
- EKMB (WL) Series
- EKMC (VZ) Series
- PaPIRs+ models
Collect data that can be utilized for crowd detection and crowd behavior analysis at stations and public facilities


- AMN (NaPiOn) Series
- EKMB (WL) Series
- EKMC (VZ) Series
- PaPIRs+ models
Improve noise immunity in locations susceptible to radio waves (e.g., near Wi-Fi devices)


PaPIRs product lineup
Standard models
Good balance between sensing range and accuracy


- EKMC (VZ)
- Standard and high sensitivity types are available, and the abundant lens lineup, including lenses capable of long-distance detection, is also a feature.
Can be used for a wide range of indoor applications.
- Application examples
-
- Bathroom lighting
- Office common areas
- Home appliances presence detection, and more
Low current consumption models
Installation in standalone locations where electrical work is not possible


- EKMB (WL)
- In addition to EKMC’s performance, these models also feature ultra-low current consumption. This contributes to longer battery life, making it ideal for battery-powered devices.
- Application examples
-
- Wireless sensor terminals
- IoT equipment
- Other battery-powered equipment, and more
High sensitivity models
Further reduce false alarm and improve detection accuracy


- PaPIRs+
- Sensitivity has been further improved, enabling accurate detection of even slight movements or distant objects. Ideal for situations where you want to minimize false alarm.
- Application examples
-
- Monitoring in hospital rooms and nursing care facilities
- High ceiling lighting for warehouses and factories
- Smart buildings, and more
Product details and inquiries
If you are uncertain whether our products suit your application needs, please feel free to contact us.
We will provide the optimal solution tailored to your detection area and installation environment.
