What is AEC-Q200 (passive component reliability test standard)?

AEC-Q200
What is AEC-Q200 (passive component reliability test standard)?

2023-09-29

An automobile carries an electronic control unit (ECU) composed of numerous electronic components. These electronic components must operate normally even when the automobile runs in a harsh environment. Different from electronic components making up consumer products, in-vehicle electronic components are required to meet more severe quality requirements.
AEC standards provide quality management requirements that in-vehicle semiconductor devices should meet. Among various types of standards included in the AEC standards is AEC-Q200 which focuses on passive components. This article will discuss AEC-Q200 and brief on Panasonic products conforming to AEC-Q200 as well.

AEC-Q200 included in AEC standards

What are AEC standards?

Automotive Electronics Council or AEC was set up in the 1990s by three leading automobile manufacturers in the United States and joined by major electronic component manufacturers. The organization is responsible for setting common standards for in-vehicle electronic components including quality standards. Its AEC Component Technical Committee is working on setting standards for reliable electronic components and component certification rules.

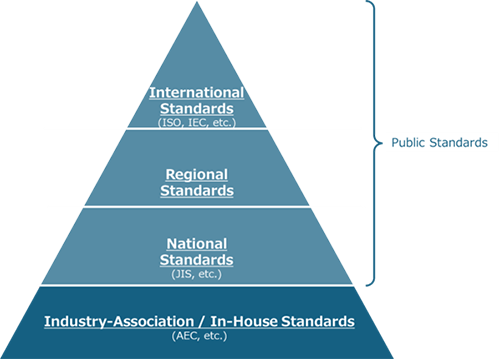

AEC standards are international standards for ensuring the reliability of in-vehicle electronic components. Automobile manufacturers will not purchase components that fail to meet the requirements defined in the standards. AEC standards provide various types of standards applied to different types of electronic components. Among them is AEC-Q200 which applies to passive components. Passive components refer to components that consume, store, or release supplied power.

  • AEC-Q100: integrated circuits (IC)
  • AEC-Q101: discrete semiconductor products (capacitors, transistors, diodes, etc.)
  • AEC-Q102: discrete optoelectronics semiconductor products (LEDs, etc.)
  • AEC-Q103: vehicular sensors
  • AEC-Q104: multichip modules (containing multiple chip pairs, ICs, etc.)
  • AEC-Q200: passive components (resistors, capacitors, inductors, etc.)

AEC-Q200 grades

AEC standards classify components into different grades corresponding to their service temperature ranges. These grades define individual places where classified components are allowed to be used. AEC-Q200 provides five grade categories, and components with a lower grade number must be able to withstand lower and higher temperatures.

Table 1 Guaranteed temperature range and applicable locations for each grade

Grade Temperature range Typical places of use of components
Low
temperature
High
temperature
0 -50°C +150°C Every mounting part
1 -40°C +125°C Most of the engine room
2 -40°C +105°C High-temperature area of the passenger room
3 -40°C +85°C Most of the passenger room
4 0°C +70°C A place for mounting non-electrical equipment

AEC-Q200 test items

To run safely in a harsh environment, an automobile must have its electronic components keep operating normally. These electronic components cannot be put on the market as components conforming to AEC-Q200 requirements unless they pass environment tests, electrical tests, etc., conducted under severe test conditions. Passive components to be certified by AEC-Q200 tests and test items to be applied are listed in the following table.

Various components to be tested include capacitors, resistors, varistors, and crystal vibrators, with test items being specified for each component. Test items vary also depending on whether a component to be tested is a lead component or a surface mount device (SMD). In addition, capacitors of different types should be tested with different test items. So, these tests must be conducted carefully.

Table 2 AEC-Q200 tests conducted on individual components
(Partially excerpted from "AEC-Q200 REV E STRESS TEST QUALIFICATION FOR PASSIVE COMPONENTS")
Test
No.
Stress・Test Components
Tantalum and Niobium Capacitors Ceramic Capacitors Aluminum Electrolytic Capacitor Film Capacitor Magnetics Networks Resistors Thermistors Trimmer Capacitors/ Resistors Varistors Quartz Crystals Ceramic Resonators EMI Suppressors / Filters Polymeric Resettable Fuses Fuses Super Capacitor
Table No.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1 Pre- and Post- Stress Electrical Test
3 High Temperature Exposure (Storage)
4 Temperature Cycling
5 Destructive Physical Analysis
7 Humidity Bias
8 High Temperature Operating Life
9 External Visual
10 Physical Dimensions
11 Terminal Strength (Leaded)
12 Resistance to Solvent
13 Mechanical Shock
14 Vibration
15 Resistance to Soldering Heat
17 ESD
18 Solderability
19 Electrical Characterization
20 Flammability
21 Board Flex
22 Terminal Strength (SMD)
24 Flame Retardance
25 Rotational Life
27 Surge Voltage
30 Electrical Transient Conduction
32 Short Circuit Fault Current Durability
33 Fault Current Durability
34 End-of-Life Mode Verification
35 Jump Start Endurance
36 Load Dump Endurance

Conclusion

AEC standards are international standards for ensuring the reliability of in-vehicle electronic components. AEC-Q200, which is included in the AEC standards, is the standard applied to passive components. These components must pass tests conducted under severe test conditions first before they are put on the market as products conforming to AEC-Q200. Panasonic offers a lot of components conforming to AEC-Q200, thus contributing to the development of in-vehicle products.
