Automotive

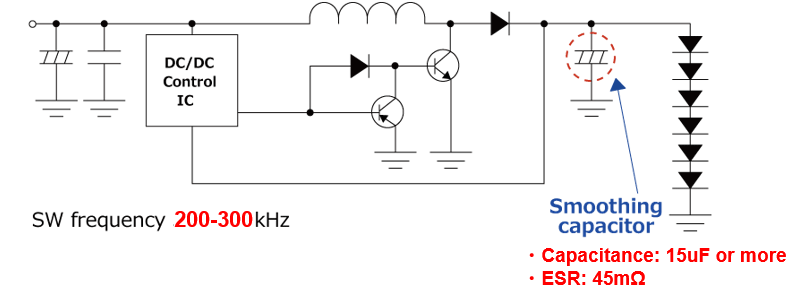

LED head light

Stable delivery and cost reduction

LEDヘッドライト LED head light
LED power supply circuit
LED電源回路 LED LED power supply circuit
Provided value
  1. Stable delivery
  2. Total Cost reduction (-50%) *inc. mounting cost
Item Current design Recommendation
PCB area image
基板面積イメージ PCB area imager

基板面積イメージ PCB area imager

Same area

Capacitor type Ceramic capacitor (MLCC) Hybrid Capacitor
Parts - ZC series EEHZC1H330XP
Specification 50 V, 10 µF, 3.2 x 2.5 mm 50 V,33 µF, ø6.3 x 8.0 mm
Number of use 3 pcs 1 pc
Total capacitance 30 µF 33 µF
Total ripple current 4.0 Arms 4.0 Arms
Life time - 125 °C, 4000 h
Datasheet - catalog image ZC series

Comparison of impedance characteristics

graph image
グラフの凡例 graph legend image
Current design
MLCC
50 V, 10 µF, 3 pcs
グラフの凡例 graph legend image
Recommendation
Hybrid
EEHZC1H330XP, 1 pc

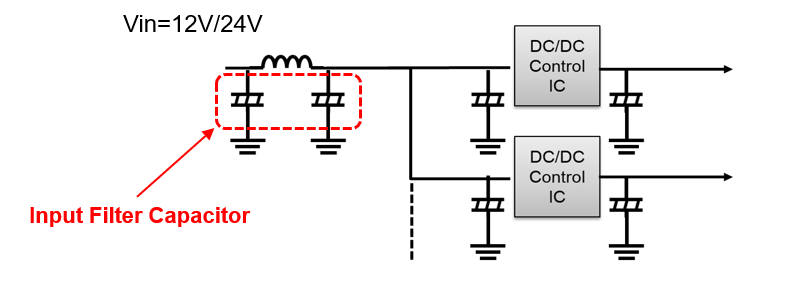

BMS (Battery Management System)

Reduction of PCB area and space

BMS (バッテリーマネージメントシステム) BMS (Battery Management System)
DC/DC power supply circuit
DC/DC電源回路 DC/DC power supply circuit
Provided value
  1. Reduction of PCB area and space (-50% to -70%)
  2. Longer life (1.3 times)
  3. Total Cost reduction (-50%) *inc. mounting cost
Low Noise Space Saving
Item Current design Replacement Recommendation
PCB area image
基板面積イメージ PCB area imager

基板面積イメージ PCB area imager

area
-50%


基板面積イメージ PCB area imager

area
-70%

Capacitor type Aluminum Electrolytic Capacitor Hybrid Capacitor Hybrid Capacitor
Parts TP series EEETP1V221AV ZC series EEHZC1V271V ZKU series EEHZK1V221UV
Specification 35 V, 220 µF, ø10 x 10.5 mm 35 V, 270 µF, ø10 x 10.5 mm 35 V, 220 µF, ø8 x 10.5 mm
Number of use 4 pcs 2 pcs 2 pcs
Total ESR 37 mΩ 10 mΩ 14 mΩ
Total ripple current 2.0 Arms 4.0 Arms 4.0 Arms
Life time 125 °C, 3000 h 125 °C, 4000 h 125 °C, 4000 h
Datasheet - catalog image ZC series catalog image ZKU series

Comparison of impedance characteristics

graph image
グラフの凡例 graph legend image
Current design
Aluminum
EEETP1V221AV, 4 pcs
グラフの凡例 graph legend image
Replacement
Hybrid
EEHZC1V271V, 2 pcs
グラフの凡例 graph legend image
Recommendation
Hybrid
EEHZK1V221UV, 2 pcs

ECU (Engine Control Unit)

Reduction of PCB height and space

ECU (エンジンコントロールユニット) ECU (Engine Control Unit)
DC/DC power supply circuit
DC/DC電源回路 DC/DC power supply circuit
Provided value
  1. Reduction of PCB area and space (area:-80%, volume:-88%)
  2. Longer life (1.3 times)
  3. Total Cost reduction (-80%) *inc. mounting cost
Low Noise Low Height
Item Current design Replacement Recommendation
PCB area image
基板面積イメージ PCB area imager

基板面積イメージ PCB area imager

area -80%
volume -80%

基板面積イメージ PCB area imager

area -80%
volume -88%

Capacitor type Aluminum Electrolytic Capacitor Hybrid Capacitor Hybrid Capacitor
Parts TP series EEETP1V221AV ZC series EEHZC1V680XV ZKU series EEHZK1V680UV
Specification 35 V, 220 µF, ø10 x 10.5 mm 35 V, 68 µF, ø6.3 x 8 mm 35 V, 68 µF, ø6.3 x 6.1 mm
Number of use 4 pcs 2 pcs 2 pcs
Total ESR 37 mΩ 18 mΩ 30 mΩ
Total ripple current 2.0 Arms 2.8 Arms 2.4 Arms
Life time 125 °C, 3000 h 125 °C, 4000 h 125 °C, 4000 h
Datasheet - catalog image ZC series catalog image ZKU series

Comparison of impedance characteristics

graph image
グラフの凡例 graph legend image
Current design
Aluminum
EEETP1V221AV, 4 pcs
グラフの凡例 graph legend image
Replacement
Hybrid
EEHZC1V680XV, 2 pcs
グラフの凡例 graph legend image
Recommendation
Hybrid
EEHZK1V680UV, 2 pcs

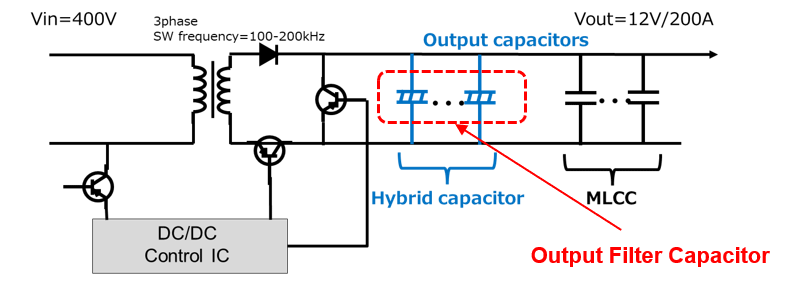

Automotive OBC (On-Board Charger)

Reduction of PCB area and space

車載OBC (オンボードチャージャー) Automotive OBC (On-Board Charger)
DC/DC power supply circuit
DC/DC電源回路 DC/DC power supply circuit
Provided value
  1. Reduction of PCB area and space (-35% to -65%)
  2. Longer life (2 times)
  3. Total Cost reduction (-50%) *inc. mounting cost
Low Noise Space Saving
Item Current design Replacement Recommendation
PCB area image
基板面積イメージ PCB area imager
基板面積イメージ PCB area imager

area -35%

基板面積イメージ PCB area imager

area -65%

Capacitor type Aluminum Electrolytic Capacitor Ceramic capacitor (MLCC) Hybrid Capacitor Hybrid Capacitor
Parts TK series EEETKE681UAQ - ZK series EEHZK1E471V ZS series EEHZS1E561V
Specification 25 V, 680 µF,
ø12.5 x 13.5 mm
16 V, 47µF,
3.2 x 2.5 mm
25 V, 470 µF, ø10 x 16.8 mm 25 V, 560 µF, ø10 x 16.8 mm
Number of use 10 pcs 10 pcs 12 pcs 6 pcs
Total ESR 2 to 3 mΩ 1.7 mΩ 1.8 mΩ
Life time 125 °C, 2000 h 125 °C, 4000 h 135 °C, 4000 h
Datasheet - catalog image ZK series catalog image ZS series

Comparison of ESR characteristics

graph image
グラフの凡例 graph legend image
Current design
Alumi + MLCC
Alumi: EEETKE681UAQ, 10 pcs
MLCC: 16 V, 47 µF, 10 pcs
グラフの凡例 graph legend image
Replacement
Hybrid
EEHZK1E471V, 12 pcs
グラフの凡例 graph legend image
Recommendation
Hybrid
EEHZS1E561V, 6 pcs

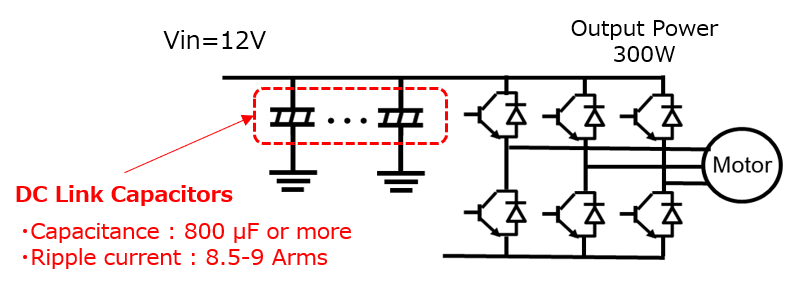

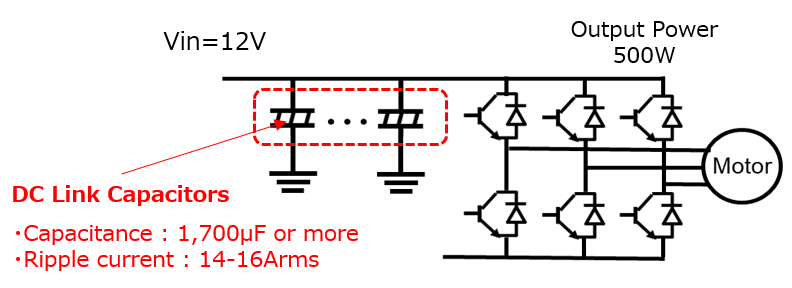

Oil pump

Reduction of PCB area and space

オイルポンプ Oil pump
Increased output from 150W to 500W

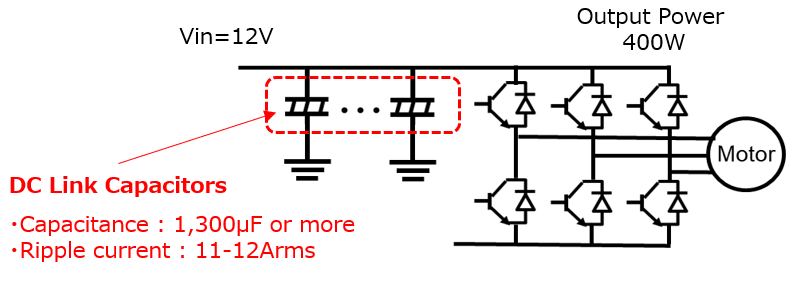

Inverter circuit
オイルポンプインバータ回路 Oil pump Inverter circuit
Provided value
  1. Reduction of PCB area and space (-25% to -50%)
  2. Total Cost reduction (-50%) *inc. mounting cost
Low Noise Space Saving
Item Current design Replacement  (1) Recommendation
PCB area image
基板面積イメージ PCB area imager

基板面積イメージ PCB area imager

area
-25%


基板面積イメージ PCB area imager

area
-50%


Capacitor type Hybrid Capacitor Hybrid Capacitor Hybrid Capacitor
Parts ZC series EEHZC1E331V ZK series EEHZK1E471V ZS series EEHZS1E561V
Specification 25 V, 330 µF, ø10 x 10.5 mm 25 V, 470 µF, ø10 x 10.5 mm 25 V, 560 µF, ø10 x 16.8 mm
Number of use 4 pcs 3 pcs 2 pcs
Total capacitance 1320 µF 1410 µF 1120 µF
Total ripple current 8.0 Arms 8.4 Arms 8.0 Arms
Life time 125 °C, 4000 h 125 °C, 4000 h 135 °C, 4000 h
Datasheet - catalog image ZK series catalog image ZS series

Comparison of impedance characteristics

graph image
グラフの凡例 graph legend image
Current design
Hybrid
EEHZC1E331V, 4 pcs
グラフの凡例 graph legend image
Replacement
Hybrid
EEHZK1E471V, 3 pcs
グラフの凡例 graph legend image
Recommendation
Hybrid
EEHZS1E561V, 2 pcs

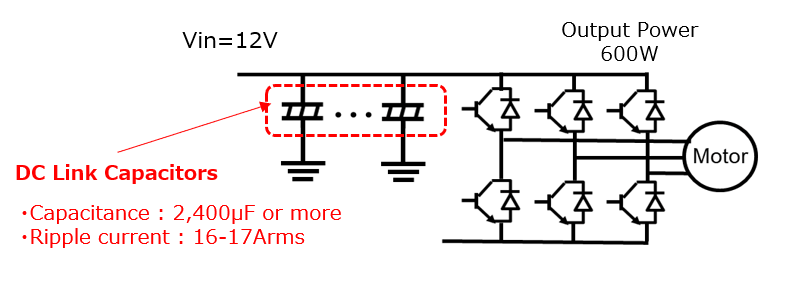

EPS (Electric Power Steering)

Reduction of PCB area and space

EPS
Inverter circuit
EPS (電動パワーステアリング)インバータ回路 EPS (Electric Power Steering)  Inverter circuit
Provided value
  1. Reduction of PCB area and space (-25% to -50%)
  2. Total Cost reduction (-50%)*inc. mounting cost
Low Noise Space Saving
Item Current design Replacement Recommendation
PCB area image
基板面積イメージ PCB area imager

基板面積イメージ PCB area imager

area
-25%


基板面積イメージ PCB area imager

area
-50%


Capacitor type Hybrid Capacitor Hybrid Capacitor Hybrid Capacitor
Parts ZC series EEHZC1E331V ZK series EEHZK1E471V ZS series EEHZS1E561V
Specification 25 V, 330 µF, ø10 x 10.5 mm 25 V, 470 µF, ø10 x 10.5 mm 25 V, 560 µF, ø10 x 16.8 mm
Number of use 4 pcs 3 pcs 2 pcs
Total capacitance 1320 µF 1410 µF 1120 µF
Total ripple current 8.0 Arms 8.4 Arms 8.0 Arms
Life time 125 °C, 4000 h 125 °C, 4000 h 135 °C, 4000 h
Datasheet - catalog image ZK series catalog image ZS series

Comparison of impedance characteristics

graph image
グラフの凡例 graph legend image
Current design
Hybrid
EEHZC1E331V, 4 pcs
グラフの凡例 graph legend image
Replacement
Hybrid
EEHZK1E471V, 3 pcs
グラフの凡例 graph legend image
Recommendation
Hybrid
EEHZS1E561V, 2 pcs

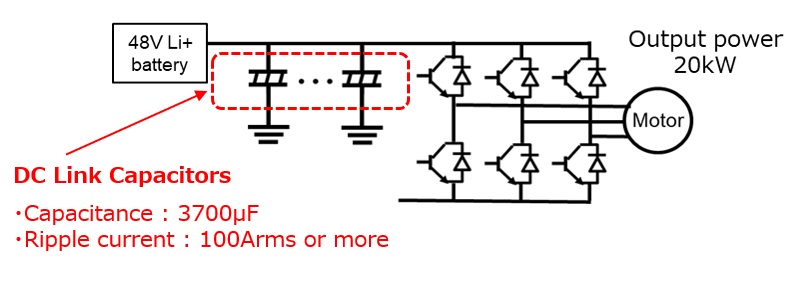

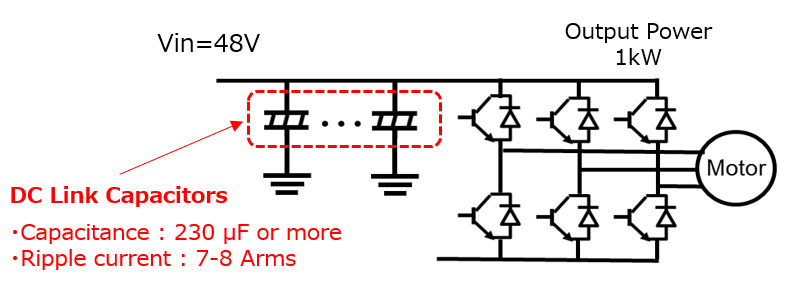

48V System-BSG(Belt-driven Starter Generator)

Reduction of PCB area and space

48Vシステム-BSG
Inverter circuit
48Vシステム-BSGインバータ回路
Provided value
  1. Reduction of PCB area and space (-50%)
  2. Total Cost reduction (-50%)*inc. mounting cost
Space Saving
Item Current design Recommendation
PCB area image
PCB area image
PCB area image
Capacitor type Hybrid Capacitor Hybrid Capacitor
Parts ZC series EEHZC1J820V ZSU series EEHZS1J181UV
Specification 63 V, 82 µF, ø10 x 10.5 mm 63 V, 180 µF, ø10 x 16.8 mm
Number of use 21 pcs 10 pcs
Total capacitance 1722 µF 1800 µF
Total ripple current 29.4 Arms 35.0 Arms
Life time 125 °C, 4000 h 125 °C, 4000 h
Datasheet - catalog imageZSU series

Comparison of impedance characteristics

Capacitors Total Impedance Impedance of current design and recommended design are equivalent characteristics.
グラフの凡例 graph legend image
Current design
Hybrid Capacitor
EEHZC1J820V, 21 個
グラフの凡例 graph legend image
Replacement
Hybrid Capacitor
EEHZS1J181UV, 10 pcs

Electric braking system

Reduction of PCB area and space

Electric braking system

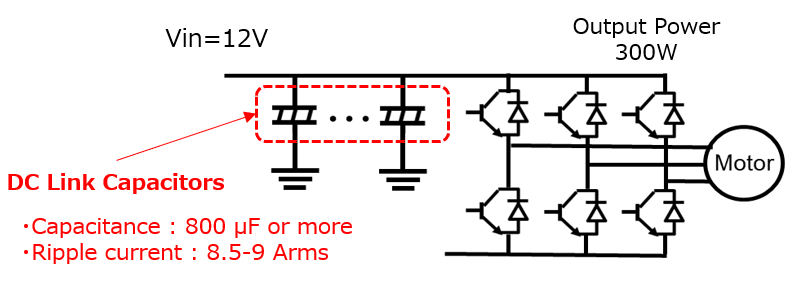

Inverter circuit
48V System-BSG Inverter circuit 48Vシステム-BSGインバータ回路
Provided value
  1. Reduction of PCB area and space (-20%)
  2. Total Cost reduction (-20%)*inc. mounting cost
Low Noise
Item Current design Recommendation
PCB area image
PCB area image
PCB area image  area -20%
Capacitor type Hybrid Capacitor Hybrid Capacitor
Parts ZC series EEHZC1V271V ZKU series EEHZK1V391UV
Specification 35 V, 270 µF, ø10 x 10.5 mm 35 V, 390 µF, ø10 x 10.5 mm
Number of use 9 pcs 7 pcs
Total capacitance 2430 µF 2730 µF
Total ripple current 18.0 Arms 19.6 Arms
Life time 125 ℃, 4000 h 125 ℃, 4000 h
Datasheet - catalog imageZKU series

Comparison of impedance characteristics

Capacitors Total Impedance 現行設計と推奨設計のインピーダンス特性同等
グラフの凡例 graph legend image
Current design
Hybrid Capacitor
EEHZC1V271V, 9 pcs
グラフの凡例 graph legend image
Replacement
Hybrid Capacitor
EEHZK1V391UV, 7 pcs

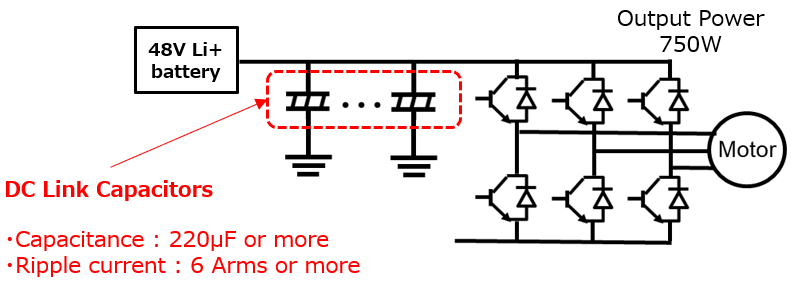

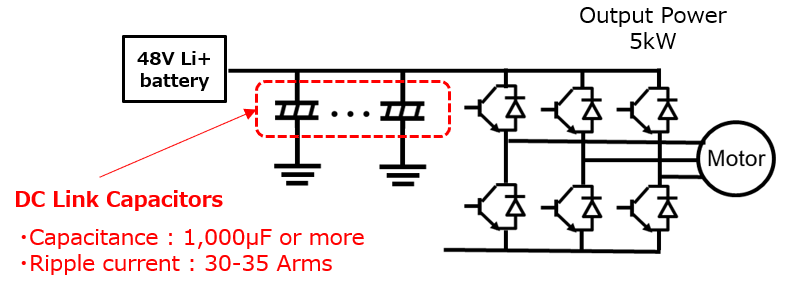

E-Bike MCU

Reduction of PCB area and space

E-Bike MCU
Inverter circuit
48V System-BSG Inverter circuit 48Vシステム-BSGインバータ回路
Provided value
  1. Stable delivery (MLCC less)
  2. otal Cost reduction (-67%)*inc. mounting cost
Low NoiseSpace Saving
Item Current design Replacement Recommendation
PCB area image
現行基板面積イメージ
置換基板面積イメージ 同一面積
推奨基板面積イメージ 面積ー30%
Capacitor type Hybrid
Capacitor
Ceramic capacitor
(MLCC)
Hybrid Capacitor Hybrid Capacitor
Parts ZC series
EEHZC1J680P
- ZS series EEHZS1J151P ZU series EEHZU1J151P
Specification 63 V, 68 µF,
ø10 x 10.2 mm
100 V, 10 µF,
5.7 x 5.0 mm
63 V, 150 µF, ø10 x 16.5 mm 63 V, 150 µF, ø10 x 16.5 mm
Number of use 12 pcs 15 pcs 18 pcs 12 pcs
Total capacitance *** µF 2700 µF 1800 µF
Total ripple current 60 Arms 63.0 Arms 62.4 Arms
Life time 125 ℃, 4000 h 125 ℃, 4000 h 125 ℃, 4000 h
Datasheet - catalog image ZS series catalog image ZU series

Comparison of impedance characteristics

Capacitors Total Impedance 現行設計と比較して推奨設計は低インピーダンス特性を有す
グラフの凡例 graph legend image
Current design
Hybrid + MLCC
Hybrid:
EEHZC1J680P, 12 pcs
MLCC:
100 V, 10 µF, 15 pcs
グラフの凡例 graph legend image
Replacement
Hybrid Capacitor
EEHZS1J151P, 18 pcs
グラフの凡例 graph legend image
Recommendation
Hybrid Capacitor
EEHZU1J151P, 12 pcs

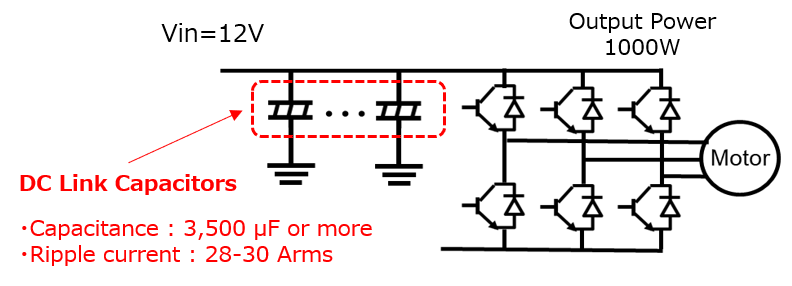

Blower motor (air conditioner blower, battery cooling fan)

Contributes to reduction of PCB area and space and stable input voltage

Blower motor Base station
Provided value
  1. Improved of noise removal performance (noise reduction in low frequency range)
  2. Reduction of PCB area and space (-60 to -70%)
  3. Longer life (1.3 times)
Low NoiseSpace Saving
Item Current design Replacement Recommendation
PCB area image PCB area image PCB area imager PCB area image PCB area imager PCB area image PCB area imager
Capacitor type Aluminum Electrolytic Capacitors Hybrid Capacitor Hybrid Capacitor
Parts TP series EEETP1V221AP ZC series EEHZC1V470P ZKU series EEHZK1V390UR
Specification 35 V, 220 µF, ø10 x 10.5 mm 35 V, 47 µF, ø6.3 x 5.8 mm 35 V, 39 µF, ø5.0 x 5.8 mm
Number of use 2 pcs 2 pcs 2 pcs
ESR 150 mΩ 60 mΩ 100 mΩ
Ripple current 0.5 Arms 0.9 Arms 0.75 Arms
Life time 125 ℃, 3000 h 125 ℃, 4000 h 125 ℃, 4000 h
Datasheet - catalog image ZC series catalog image ZKU series

Comparison of π filter characteristics

graph image
グラフの凡例 graph legend image
Current design
Aluminum Electrolytic Capacitors
EEETP1V221AV, 2 pcs
グラフの凡例 graph legend image
Replacement
Hybrid Capacitor
EEHZC1V470P, 2 pcs
グラフの凡例 graph legend image
Recommendation
Hybrid Capacitor
EEHZK1V390UR, 2 pcs

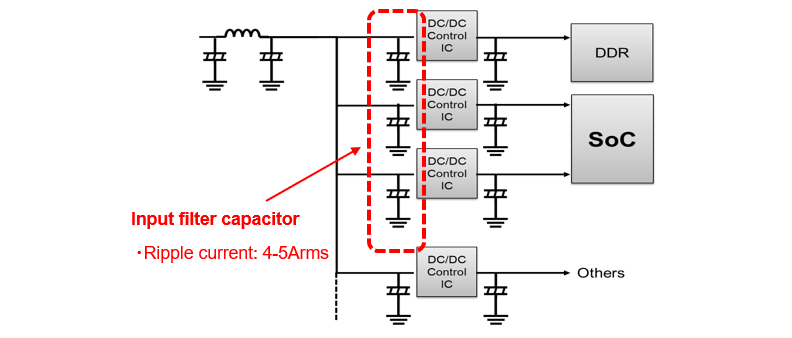

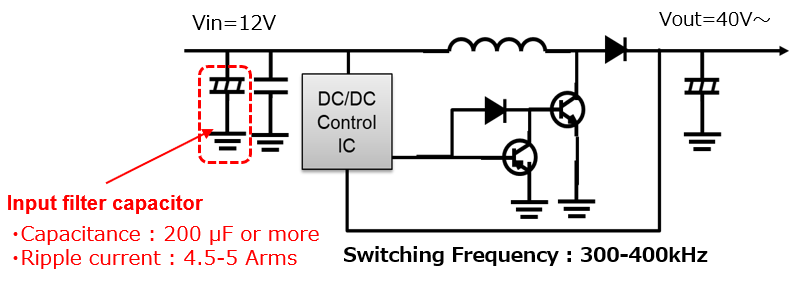

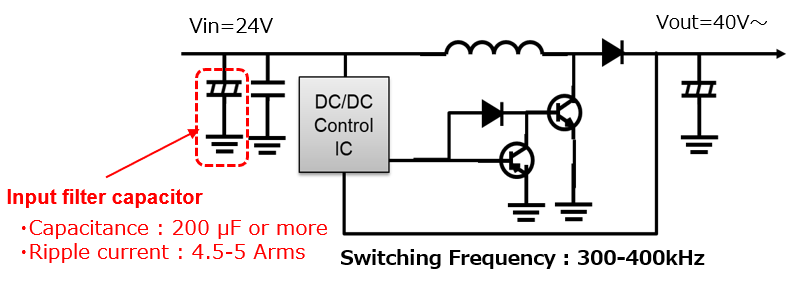

ADAS millimeter wave radar

Contributes to reduction of PCB area and space and stable input voltage

ADAS millimeter wave radar Base station
Provided value
  1. Improved of noise removal performance (noise reduction in low frequency range)
  2. Reduction of PCB area and space (-60% to -70%)
  3. Longer life (1.3 times)
Low NoiseSpace Saving
Item Current design Replacement Recommendation
PCB area image PCB area image PCB area imager PCB area image PCB area imager PCB area image PCB area imager
Capacitor type Aluminum Electrolytic Capacitors Hybrid Capacitor Hybrid Capacitor
Parts TPseries  EEETP1V101AP ZC series EEHZC1V470P ZKU series EEHZK1V390UR
Specification 35 V, 100 µF, ø8 x 10.2 mm 35 V, 47 µF, ø6.3 x 5.8 mm 35 V, 39 µF, ø5.0 x 5.8 mm
Number of use 2 pcs 2 pcs 2 pcs
ESR 200 mΩ 60 mΩ 100 mΩ
Ripple current 0.27 Arms 0.9 Arms 0.75 Arms
Life time 125 ℃, 3000 h 125 ℃, 4000 h 125 ℃, 4000 h
Datasheet - catalog image ZC series catalog image ZKU series

Comparison of π filter characteristics

graph image
グラフの凡例 graph legend image
Current design
Aluminum Electrolytic Capacitors
EEETP1V221AV, 2 pcs
グラフの凡例 graph legend image
Replacement
Hybrid Capacitor
EEHZC1V470P, 2 pcs
グラフの凡例 graph legend image
Recommendation
Hybrid Capacitor
EEHZK1V390UR, 2 pcs

Large current DC/DC power supply for Mild-HEV

Reduction of PCB area and space

ADAS ミリ波レーダー Base station
Provided value
  1. Reduction of PCB space (-66%)
  2. Total Cost reduction (-66%)*inc. mounting cost
Item Current design Recommendation
PCB area imager 基板面積イメージ PCB area imager 基板面積イメージ PCB area imager
Hybrid Capacitor Hybrid Capacitor Hybrid Capacitor
Parts ZC series EEHZC1E331P ZSU series EEHZS1E102UP
Specification 25 V, 330 µF, ø10 x 10.2 mm 25 V, 1000 µF, ø10 x 16.5 mm
Number of use 6 pcs 2 pcs
Total capacitance 1980 µF 2000 µF
ESR 3.3 mΩ 5.5 mΩ
Life time 125 ℃, 4000 h 125 ℃, 4000 h
Datasheet - catalog image ZSU series

・ Comparative evaluation of voltage changes that occur when the capacitor responds to load transient current

graph image

↑Back to top

Industrial equipment

Industrial equipment motor

Reduction of PCB area and space

産業機器モータ Industrial equipment motor
Inverter circuit
産業機器モータインバータ回路 Inverter circuitIndustrial equipment motor
Provided value
  1. Reduction of PCB area and space (-40% to -60%)
  2. Longer life (1.3 times)
  3. Total Cost reduction (-50%) *inc. mounting cost
Low Noise Low Noise + Space Saving
Item Current design Replacement Recommendation
PCB area image
基板面積イメージ PCB area imager
基板面積イメージ PCB area imager

area -40%

基板面積イメージ PCB area imager

area -60%


Capacitor type Aluminum Electrolytic Capacitor Ceramic capacitor (MLCC) Hybrid Capacitor Hybrid Capacitor
Parts TK series EEETK1E221UP - ZC series EEHZC1E101XV ZS series EEHZS1E561V
Specification 25 V, 220 µF,
ø8 x 10.2 mm
25 V, 22 µF,
3.2 x 2.5 mm
25 V, 100 µF, ø6.3 x 8.0 mm 25 V, 560 µF, ø10 x 16.8 mm
Number of use 1 pc 10 pcs 3 pcs 1 pc
Total capacitance 300 µF 300 µF 560 µF
Total ripple current 4.0 Arms 4.2 Arms 4.0 Arms
Life time 125 °C, 3000 h 125 °C, 4000 h 135 °C, 4000 h
Datasheet - catalog image ZC series catalog image ZS series

Comparison of impedance characteristics

graph image
グラフの凡例 graph legend image
Current design
Alumi + MLCC
Alumi: EEETK1E221UP, 1 pc
MLCC: 25 V, 22 µF, 10 pcs
グラフの凡例 graph legend image
Replacement
Hybrid
EEHZC1E101XV, 3 pcs
グラフの凡例 graph legend image
Recommendation
Hybrid
EEHZS1E561V, 1 pc

Server AC/DC power supply

Reduction of PCB space and longer life of the set

サーバー AC/DC電源 Server AC/DC power supply
回路図 circuit diagram
Provided value
  1. Reduction of PCB area and space (-60%)
  2. Longer life (2 times)
Low Noise
Item Current design Recommendation
PCB area image
基板面積イメージ PCB area imager

基板面積イメージ PCB area imager

area -60%


Capacitor type Aluminum Electrolytic Capacitor Hybrid Capacitor
Parts TKseries EEETKK221UAM ZC series EEHZC1K470P
Specification 80 V, 220 µF, 16 x 16.5 mm 80 V, 47 µF, ø10 x 10.2 mm
Number of use 5 pcs 5 pcs
Total ESR 75 mΩ 7.2 mΩ
Total capacitance 81 µF 179 µF
Life time 125 °C, 2000 h 125 °C, 4000 h
Datasheet - catalog image ZC series

Comparison of ESR characteristicsComparison of capacitance characteristics

graph image
グラフの凡例 graph legend image
Current design
Aluminum
EEETKK221UAM, 5 pcs
グラフの凡例 graph legend image
Recommendation
Hybrid
EEHZC1K470P, 5 pc

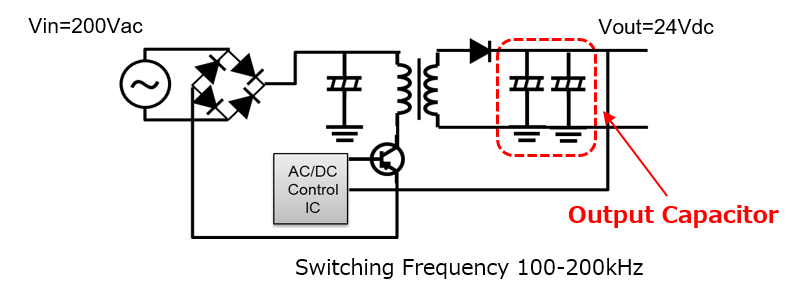

AC/DC power supply for industrial use

Reduction of PCB space and longer life of the set

産業用 AC/DC電源 AC/DC power supply for industrial use
回路図 circuit diagram
Provided value
  1. Reduction of PCB area and space (-60%)
  2. Longer life (2 times)
Low Noise
Item Current design Recommendation
PCB area image
基板面積イメージ PCB area imager

基板面積イメージ PCB area imager

area -60%


Capacitor type Aluminum Electrolytic Capacitor Hybrid Capacitor
Parts TKseries EEETKK221UAM ZC series EEHZC1K470P
Specification 80 V, 220 µF, 16 x 16.5 mm 80 V, 47 µF, ø10 x 10.2 mm
Number of use 5 pcs 5 pcs
Total ESR 75 mΩ 7.2 mΩ
Total capacitance 81 µF 179 µF
Life time 125 °C, 2000 h 125 °C, 4000 h
Datasheet - catalog image ZC series

Comparison of ESR characteristicsComparison of capacitance characteristics

graph image
グラフの凡例 graph legend image
Current design
Aluminum
EEETKK221UAM, 5 pcs
グラフの凡例 graph legend image
Recommendation
Hybrid
EEHZC1K470P, 5 pcs

Security camera/PoE power supply

Longer life of the set and stable design

セキュリティーカメラ/PoE電源 Security camera/PoE power supply
回路図 circuit diagram
Provided value
  1. Reduction of PCB area and space (-50% to -70%)
  2. Stabilization of noise removal performance (noise reduction in low frequency range)
  3. Maintenance free (5 times longer life)
Space Saving Low Noise
Item Current design Replacement Recommendation
PCB area image
基板面積イメージ PCB area imager

基板面積イメージ PCB area imager

area -65%
MLCC less

基板面積イメージ PCB area imager

area -50%
MLCC less

Capacitor type Aluminum Electrolytic Capacitor Ceramic capacitor (MLCC) Hybrid Capacitor Hybrid Capacitor
Parts FK series EEEFK1J101P - ZA series EEHZA1J330P ZA series EEHZA1J820P
Specification 63 V, 100 µF,
ø10 x 10.2 mm
100 V, 2.2 µF,
3.2 x 2.5 mm
63 V, 33 µF, ø8 x 10.2 mm 63 V, 82 µF, ø10 x 10.2 mm
Number of use 2 pcs 2 pcs 1 pc 1 pc
Total ESR 350 mΩ 40 mΩ 30 mΩ
Total ripple current 0.4 Arms 1.7 Arms 1.8 Arms
Life time 105 °C, 2000 h 105 °C, 10000 h 105 °C, 10000 h
Datasheet - catalog image ZA series catalog image ZA series

Comparison of LC filter characteristics characteristics

graph image
グラフの凡例 graph legend image
Current design
Alumi + MLCC
Alumi: EEEFK1J101P, 2 pcs
MLCC: 100 V, 2.2 µF, 2 pcs
グラフの凡例 graph legend image
Replacement
Hybrid
EEHZA1J330P, 1 pc
グラフの凡例 graph legend image
Recommendation
Hybrid
EEHZA1J820P, 1 pc

Base station

Longer life of the set and stable input voltage

基地局 Base station

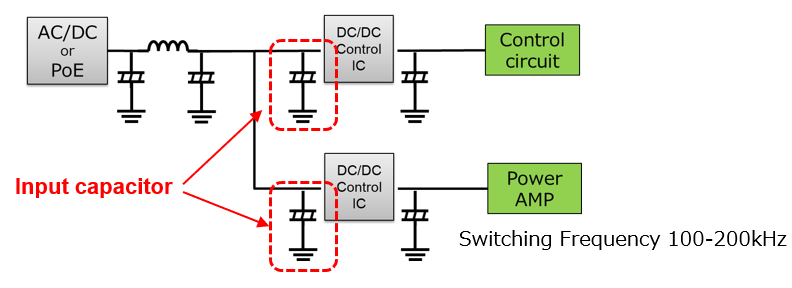

回路図 circuit diagram
Provided value
  1. Reduction of PCB area and space (-70%)
  2. Improved of noise removal performance (noise reduction in low frequency range)
  3. Longer life (2 times)
Space Saving Low Noise
Item Current design Replacement Recommendation
PCB area image
基板面積イメージ PCB area imager

基板面積イメージ PCB area imager

area -78%


基板面積イメージ PCB area imager

area -70%


Capacitor type Aluminum Electrolytic Capacitor Hybrid Capacitor Hybrid Capacitor
Parts TK series EEETK1J221AQ ZC series EEHZC1J470P ZS series EEHZS1J101P
Specification 63 V, 220 µF,
ø12.5 x 13.5 mm
63 V, 47 µF, ø8 x 10.2 mm 63 V, 100 µF, ø10 x 12.5 mm
Number of use 4 pcs 2 pcs 2 pcs
Total ESR 65 mΩ 20 mΩ 9.5 mΩ
Total ripple current 1.4 Arms 2.2 Arms 6.0 Arms
Life time 125 °C, 2000 h 125 °C, 4000 h 135°C, 4000 h
Datasheet - catalog image ZC series catalog image ZS series

Comparison of π filter characteristics characteristics

graph image
グラフの凡例 graph legend image
Current design
Aluminum
EEETK1J221AQ, 4 pcs
グラフの凡例 graph legend image
Replacement
Hybrid
EEHZC1J470P, 2 pcs
グラフの凡例 graph legend image
Recommendation
Hybrid
EEHZS1J101P, 2 pcs

↑Back to top

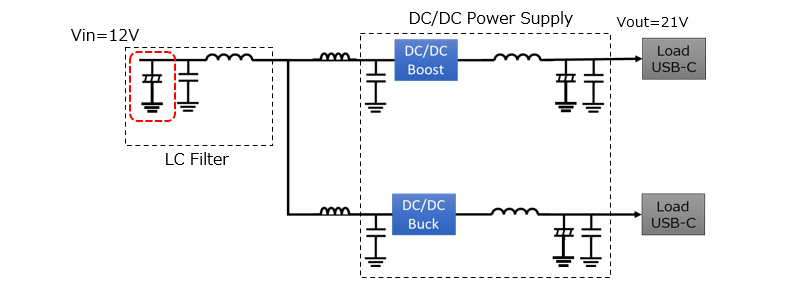

Consumer equipment

LCD projector

Stabilization of output voltage and noise reduction

液晶プロジェクター,液晶投影仪 LCD projector
回路図 circuit diagram
Provided value
  1. Reduction of PCB area and space (-20%)
  2. Longer life (1.3 times)
Low Noise
Item Current design Recommendation
PCB area image

基板面積イメージ PCB area imager

基板面積イメージ PCB area imager

area -20%

Capacitor type Aluminum Electrolytic Capacitor Ceramic capacitor (MLCC) Hybrid Capacitor Ceramic capacitor (MLCC)
Parts TC series EEETC1E331P - ZKU series EEHZK1E331UP -
Specification 25 V, 330 µF,
,ø10 x 10.2 mm
25 V, 22 µF,
3.2 x 2.5 mm
25 V, 330 µF,
ø8 x 10.2 mm
25 V, 10 µF,
3.2 x 1.6 mm
Number of use 1 pc 2 pcs 1 pc 1 pc
Total ESR 150 mΩ 27 mΩ
Total ripple current 0.75 Arms 2.0 Arms
Life time 125 °C, 3000 h 125 °C, 4000 h
Datasheet   catalog image ZKU series

Comparison of ESR characteristics characteristics

graph image
グラフの凡例 graph legend image
Current design
Alumi + MLCC
Alumi: EEETC1E331P, 1 pc
MLCC: 25 V, 22 µF, 2 pcs
グラフの凡例 graph legend image
Recommendation
Hybrid + MLCC
Hybrid : EEHZK1E331UP, 1 pc
MLCC: 25 V, 10 µF, 1 pc

↑Back to top
