Resistor Value: -

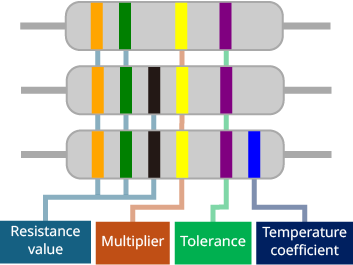

Color Code Chart
| Color | Digit | Multiplier | Tolerance | T.C.R |
|---|---|---|---|---|
| Black | 0 | ×100 | - | 250ppm/K |
| Brown | 1 | ×101 | ±1% | 100ppm/K |
| Red | 2 | ×102 | ±2% | 50ppm/K |
| Orange | 3 | ×103 | - | 15ppm/K |
| Yellow | 4 | ×104 | - | 25ppm/K |
| Green | 5 | ×105 | ±0.5% | 20ppm/K |
| Blue | 6 | ×106 | ±0.25% | 10ppm/K |
| Violet | 7 | ×107 | ±0.1% | 5ppm/K |
| Gray | 8 | ×108 | ±0.05% | 1ppm/K |
| White | 9 | ×109 | - | - |
| Gold | - | ×10-1 | ±5% | - |
| Silver | - | ×10-2 | ±10% | - |
