Conductive Polymer Hybrid Aluminum Electrolytic Capacitors:Line Up

Notes for using technical information

Series List

Type Series Datasheet Image High temperature guarantee Rated voltage range
(V)
Capacitance range
(μF)
Rated ripple current
(A)
Size
[øxL]
(mm)
AEC-Q200 Features
Surface
Mount Type
ZA
(High temp. reflow)
導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors-ZA 105°C/10000h 25 to 80 10 to 330 0.75 to 2.5
(at 105°C)
5x5.8 to 10x10.2 Compliant
  • 105°C standard
  • High voltage (80V max)
ZC
(High temp. reflow)
導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors-ZC 125°C/4000h 25 to 80 10 to 330 0.5 to 2
(at 125°C)
5x5.8 to 10x10.2 Compliant
  • 125°C standard
  • High voltage (80V max)
ZK
(High temp. reflow)
導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors-ZK 125°C/4000h 25 to 35 33 to 470 0.75 to 2.8
(at 125°C)
5x5.8 to 10x10.2 Compliant
ZKU
(High temp. reflow)
導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors-ZKU 125°C/4000h 25 to 35 39 to 560 0.75 to 2.8
(at 125°C)
5x5.8 to 10x10.2 Compliant
  • High capacitance (ZK comparison)
ZS
(High temp. reflow)
導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors-ZS 125°C/4000h 25 to 63 100 to 560 3 to 4
(at 125°C)
10x12.5, 10x16.5 Compliant
ZU
(High temp. reflow)
導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors-ZU 135°C/4000h
125°C/4000h
25 to 63 100 to 560 4.6 to 5.8
(at 125°C)
10x12.5,
10x16.5
Compliant
ZSU
(High temp. reflow)
導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors-ZSU 125°C/4000h 25 to 63 120 to 1000 3 to 4
(at 125°C)
10x12.5,
10x16.5
Compliant
ZE
(High temp. reflow)
導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors-ZE 145°C/2000h
135°C/4000h
25 to 63 33 to 330 0.6 to 0.9
(at 145°C)
1.1 to 2
(at 135°C)
8x10.2, 10x10.2 Compliant
  • High temperature guarantee (145°C)
ZF
(High temp. reflow)
導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors-ZF 150°C/1000h 25 to 63 33 to 270 0.65 to 1
(at 150°C)
8x10.2, 10x10.2 Compliant
  • High temperature guarantee (150°C)
ZT
(High ripple current)
導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors 125°C/4000h 25 to 63 33 to 330 2.4 to 3.5
(at 125°C)
8x10.2, 10x10.2 Compliant
  • High ripple current
Radial
lead type
ZA-A 導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors 105°C/10000h 25 to 80 22 to 330 1.4 to 2.5
(at 105°C)
8x9.5, 10x9.5 Compliant
  • 105°C standard
  • High voltage (80V max)
ZC-A 導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors 125°C/4000h 25 to 80 22 to 330 1.05 to 2
(at 125°C)
8x9.5, 10x9.5 Compliant
  • 125°C standard
  • High voltage (80V max)
ZK-A 導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors 125°C/4000h 25 to 35 180 to 470 2 to 2.8
(at 125°C)
8x9.5, 10x9.5 Compliant
  • High capacitance and high ripple current
    (ZC comparison)
ZKU-A 導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors 125°C/4000h 25 to 35 220 to 560 2 to 2.8
(at 125°C)
8x9.5, 10x9.5 Compliant
  • High capacitance (ZK comparison)
ZS-A 導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors 125°C/4000h 25 to 63 100 to 560 3 to 4
(at 125°C)
10x11.7, 10x15.7 Compliant
  • High capacitance and high ripple current
    (ZC comparison)
ZSU-A 導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors-ZSU-A 125°C/4000h 25 to 63 120 to 1000 3 to 4
(at 125°C)
10x11.7,
10x15.7
Compliant
  • Large capacitance (ZS comparison)
ZE-A 導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors 145°C/2000h
135°C/4000h
25 to 63 33 to 330 0.6 to 0.9
(at 145°C)
1.1 to 2
(at 135°C)
8x9.5, 10x9.5 Compliant
  • High temperature guarantee (145°C)
ZF-A 導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors-ZF-A 150°C/1000h 25 to 63 33 to 270 0.65 to 1
(at 150°C)
8x9.5, 10x9.5 Compliant
  • High temperature guarantee (150°C)
ZT-A 導電性高分子ハイブリッドアルミ電解コンデンサ,Conductive Polymer Hybrid Aluminum Electrolytic Capacitors 125°C/4000h 25 to 63 33 to 330 2.4 to 3.5
(at 125°C)
8x9.5, 10x9.5 Compliant
  • High ripple current

Diagram

Surface Mount Type

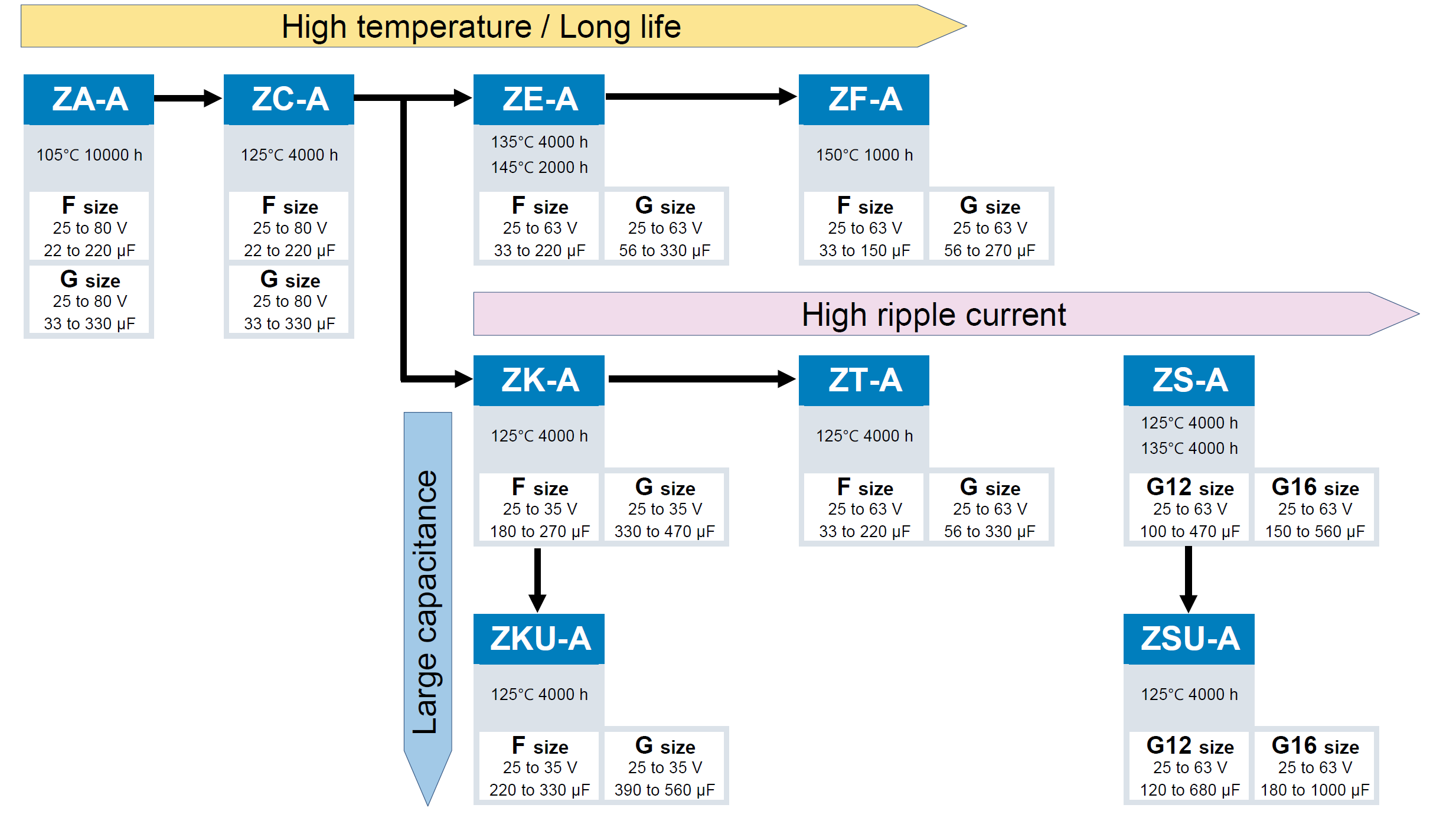

Radial Lead Type

Dimension

Surface Mount Type

  • General product
    General product
  • Anti-vibration type
    Anti-vibration type
Unit:mm
Sign Size code
C D D8 F G G12 G16
øD 5.0 6.3 6.3 8.0 10 10 10
L General product 5.8 5.8 7.7 10.2 10.2 12.5 16.5
Anti-vibration type - 6.1 8.0 10.5 10.5 12.8 16.8
A,B 5.3 6.6 6.6 8.3 10.3 10.3 10.3
H 6.5 max 7.8 max 7.8 max 10.0 max 12.0 max 11±0.2 11±0.2


Radial Lead Type

Unit:mm
Sign Size code
F G G12 G16
øD 8.0 10.0 10.0 10.0
L 9.5 9.5 11.7 15.7
ød 0.6 0.6 0.8 0.8
F 3.5 5.0 5.0 5.0
