Thin Film vs. Thick Film Resistors: An Engineer’s Complete Guide

1. Overview

Choosing the right resistor directly influences the performance and reliability of electronic devices. Among the many types available, thin film and thick film resistors are two of the most widely used, each with distinct characteristics.

This article clarifies their differences and provides guidance on selecting the optimal component for your design.

In general:

For high precision requirements, choose thin film resistors.
For cost-sensitive or environmentally demanding applications, choose thick film resistors.

2. Thin film Resistors: Fundamentals and Characteristics

Thin film resistors are manufactured by vacuum-depositing or sputtering a metal alloy film (e.g., NiCr) onto a ceramic substrate, followed by laser trimming to fine-tune the resistance value.

Key Characteristics：

High precision (tight tolerance)：typically ±0.1% to ±1%
Low TCR：generally ±5 to ±25 ppm/°C
Low noise：due to a uniform conductive metal film
Excellent long-term stability：minimal drift, enabling longer calibration intervals
Suitable for miniaturization：allows precise control of film thickness and geometry

Thin film resistors are widely used in measurement equipment, precision control circuits, and other applications requiring stable, accurate performance over long periods.

3. Thick film Resistors: Fundamentals and Characteristics

Thick film resistors are created by screen-printing a resistive paste onto a ceramic substrate and firing it at high temperature to form the conductive path.

This manufacturing process offers high productivity, cost advantages, and a broad product range.

Key Characteristics：

Low cost and excellent mass production suitability
High environmental robustness (humidity, mechanical stress): ideal for industrial applications
For sulfur rich environments, use anti sulfur types
Higher withstand voltage for the same size
Wider tolerance range: typically ±1% to ±5%
Stronger pulse endurance: advantageous for surge or inrush applications

Thick film resistors are common in home appliances, industrial machinery, and other applications where durability and cost efficiency are more critical than precision.

4. Key Differences Between thin film and thick film

Understanding these differences helps ensure optimal component selection.

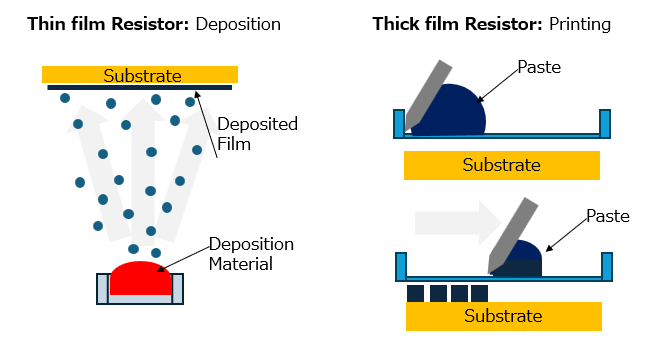

Manufacturing Process

Thin film：Metal deposition → micro-patterning → nanometer level thickness control
Thick film：Printed resistive paste + firing → lower cost and high volume → micrometer level thickness control

Relationship Between film thickness and Resistance

Resistance depends on resistivity (ρ), length (L), width (W), and film thickness (t):

R = ρ · L
W·t
Thin film allows precise control of t, enabling tight tolerance via laser trimming.
Thick film printing introduces variation due to paste distribution, shrinkage, and microstructure, resulting in wider tolerances and higher TCR.

Uniformity, Trimming, and Material Factors

Thin film: higher uniformity, denser crystalline structure, low noise, better TCR; Laser trimming provides fine and highly accurate adjustments.
Thick film: microstructure with glassy phases increases TCR; trimming can induce stress or microcracks.

This is why thin film resistors are typically associated with higher precision and better temperature stability.

Characteristic	Thin film Resistor	Thick film Resistor
Tolerance	◎(±0.1％ to ±1％)	△(±1％ to ±5％)
TCR	◎(±5 to ±25 ppm/°C)	△(±100 to ±300 ppm/°C)
Noise	◎ (Low)	◯ (Adequate for general use)
Environmental Resistance	Good	Excellent
Withstand Voltage	Good	Higher in same size
Cost	Higher	Lower

*Values represent general industry trends. Check each manufacturer’s datasheet for exact specifications.

5. Application-Based Selection Guide

5-1. When to Use thin film Resistors

Precision measurement equipment
Precision analog circuits
Circuits requiring minimal temperature drift

5-2. When to Use Thick film Resistors

Consumer electronics
Industrial equipment
Applications needing higher withstand voltage, surge durability, or better environmental resistance

5-3. Summary: Key Selection Points

Precision & temperature stability → Thin film
Cost & environmental robustness → Thick film
High voltage capability → Thick film

Understanding these trade-offs enables optimized circuit design.

Summary

Thin film resistors are ideal for electronic equipment that requires high precision and high reliability, while thick film resistors are better suited for industrial applications where cost efficiency and environmental robustness are key. By understanding the differences between the two technologies and selecting the appropriate option for your design goals, you can maximize overall performance and reliability.

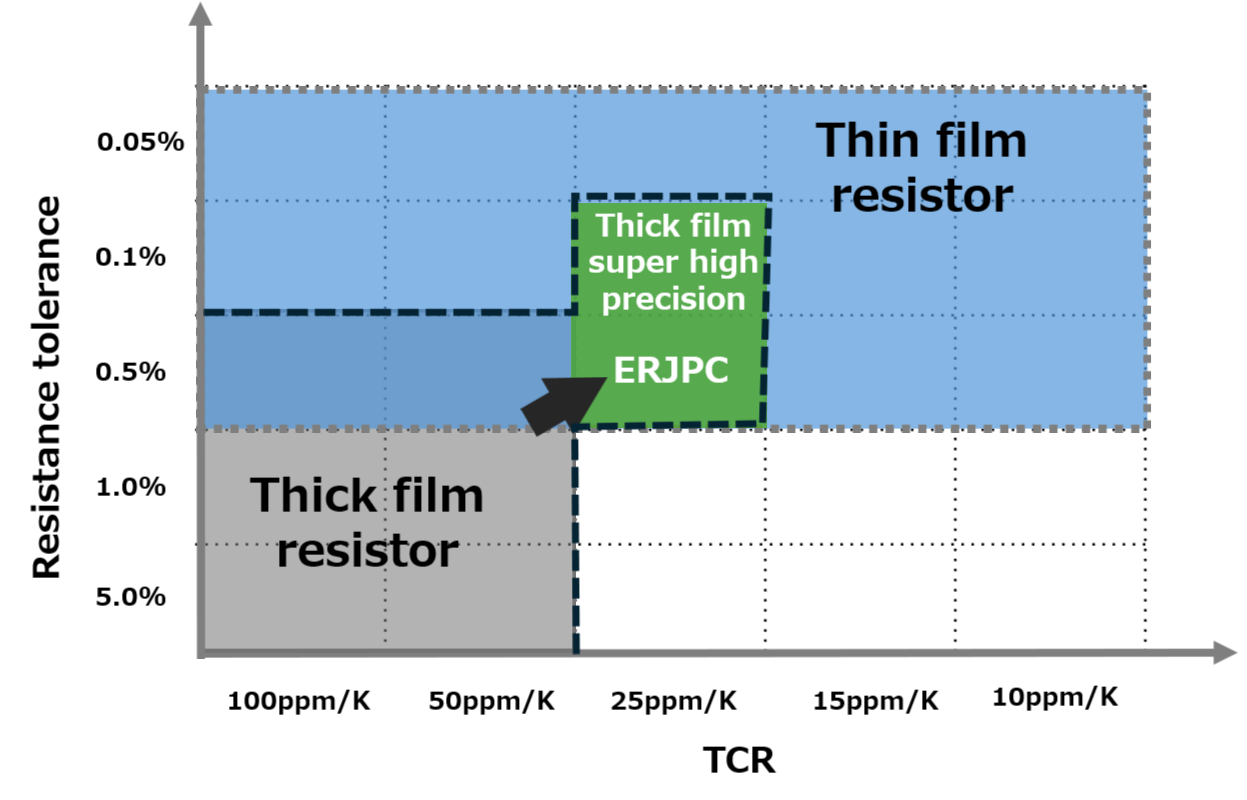

Panasonic’s ERJPC series delivers thin film class precision despite being a thick film resistor, offering exceptional performance for demanding applications.Please refer to the following link for more details.
Thick film Technology Achieves High Precision: ±0.1% Tolerance, ±25 ppm TCR

6. Frequently Asked Questions (FAQ)

Q1. What is the most significant difference between thin film and thic film?

A. The main differences arise from their manufacturing processes, leading to trade-offs in precision, TCR, noise performance, cost, and environmental robustness.
Thin film resistors excel in high precision and low noise, while thick film resistors are advantageous in terms of cost efficiency, environmental durability, and higher withstand voltage.
Q2. How do they differ in noise performance?

A. Thin film exhibits lower noise, beneficial for low-level analog signals. For digital or general divider applications, thick film is often sufficient.
Q3. Which has a higher withstand voltage?

A. Thick film typically withstands higher voltages for the same package size.
Q4. Which one offers better long-term stability?

A. Thin film generally shows smaller drift. thick film can achieve long-term reliability with proper grade selection.
Q5. How do they compare in cost?

A. Typically thin film > Thick film, although thin film may reduce system-level cost through fewer compensations or calibration requirements.
Q6. Can thick film resistors replace thin film ones?

A. Yes—if tolerance, TCR, noise, and voltage/pulse requirements are satisfied.

Panasonic’s high precision thick film resistor series (ERJPC) achieves thin film-class accuracy while maintaining the advantages of thick film technology. Please see the link below for more details.
Thick film Technology Achieves High Precision: ±0.1% Tolerance, ±25 ppm TCR
Q7. Which is stronger against pulse loads?

A.Thick film resistors are generally more robust. Their printed structure provides better energy dispersion and heat dissipation, making them more tolerant of inrush currents and surge events. Thin film resistors, on the other hand, may be more susceptible to localized heating due to the trimming grooves in their precision film structure.
Be sure to follow the surge standards (e.g., evaluations based on IEC 61000 4 5) and the pulse load ratings specified in the datasheet. Also note that allowable energy differs between short pulses (µs range) and long pulses (ms and above).
Q8. How about sulfur resistance?

A. Electrode systems that contain silver (Ag) can react with sulfur (S) to form silver sulfide, which may cause resistance drift or even open circuit failures. In environments with high sulfur exposure—such as industrial sites, areas near tires, rubber molding processes, hot springs, volcanic gas regions, or food processing facilities that generate sulfur compounds—thick film anti sulfur types (Ag free electrodes, reinforced barrier layers, or special protective coatings) should be used. Thin film resistors, which typically use Ni-based alloy electrodes, are generally more resistant to sulfurization, but evaluation is still essential in extreme sulfur environments. We recommend reviewing each manufacturer’s sulfur resistance test data (e.g., ASTM B809 or their proprietary JIS based tests).

Panasonic offers a lineup of high-durability, high-reliability thin film chip resistors engineered with a specialized structure that provides excellent resistance to sulfurization. Please refer to the link below for more details.
Anti-Sulfurated Chip Resistors
