For metal mesh use hard coat film | MUAH5

For metal mesh use hard coat film



  1. High adhesion with UV resin
  2. Good to wettability of the underside hard coat
  3. Appearance quality stability

Product features

Product name Product number
For metal mesh use hard coat film Fine Tiara MUAH5
Applications
Touch panel
Touch panel

Concept

Concept

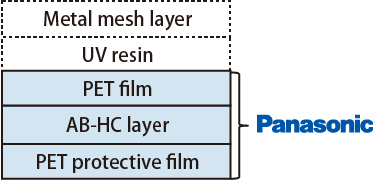

Product layer structure

Product layer structure

General properties

Item Unit MUAH5
Base film thickness μm 100 50
Protective film thickness μm 50 125
Total light transmittance % 91.4 90.0
Haze % 1.1 0.7
Pencil hardness 2H H
Anti-Blocking property Good Good
Heat shrinkable (MD)          %                       0.3                           0.3
Heat shrinkable (TD) % 0.1 0.2
Remarks Mass production Under development

The above data is actual values and not guaranteed values.
