For ITO use index-matching hard coat film | MUAH7

For ITO use index-matching hard coat film



  1. Good to wettability of the underside hard coat

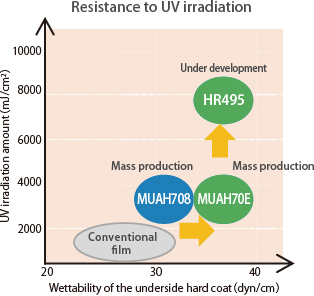

  2. Resistance to UV irradiation
  3. It can be designed to a low retardation substrate

Product features

Product name Product number
For ITO use index-matching hard coat film Fine Tiara MUAH7
Applications
Touch panel
Touch panel

Concept

Concept

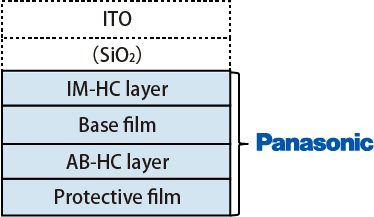

Product layer structure

Product layer structure

General properties

Item Unit MUAH708 MUAH70E HR495
(Under development)
COP IM-HC
(Under development)
PC IM-HC
(Under development)
Base film PET PET PET COP PC
Film thickness μm 50, 125 50, 125 50, 125 35, 50, 100 100
Total light transmittance % 89.4 90.2 90.2 89.5 90.1
Haze % 0.3 0.4 0.4 0.2 0.7
Adhesiveness (IM-HC layer) 100/100 100/100 100/100 100/100 100/100
Adhesiveness of IM layer
(After UV irradiation)
3000mJ/cm2
100/100
3000mJ/cm2
100/100
8000mJ/cm2
100/100
Surface energy (AB-HC layer) dyn/cm 34 38 38 38 38
Pencil hardness (IM-HC layer) H H H HB B
Pencil hardness (AB-HC layer) H H H HB B
Remarks Mass production Mass production Under development Under development Under development

The above data is actual values and not guaranteed values.
