Anti-Glare Type Anti-Reflection Films for Automotive Displays



  1. Excellent Optical Characteristics and Cost Performance by Wet Coating Process.
  2. Excellent Weatherability Conforming to the DIN 75220 Standard.
  3. High Infrared Ray Transmittance Allows Driver Monitoring System(DMS) Camera to be Embedded in the Bezel of CID.

Advanced Films

  •  Part Number

MUAG8 (G200N)

  • Application
  • Detailed use
Automotive
・Automotive
Automotive displays(including instrument cluster panels) such as center information displays, side displays and automotive displays equipped with driver monitoring systems on the periphery.

Properties

Low Reflectance
0.5% (SCI)
Excellent Weatherability
Conforming to the DIN 75220
High Infrared Ray Transmittance

Product Introduction Video

Layer Structure

Layer Structure

Application Image

Application Image

Wet Coating Process with excellent cost performance

Wet Coating Process with excellent cost performance

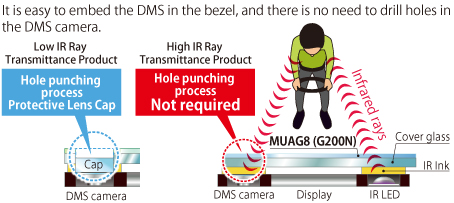

High IR Ray Transmittance enables infrared detection through film

High IR Ray Transmittance enables infrared detection through film

Weatherability Test and Cross-hatch adhesion Test

Weatherability Test and Cross-hatch adhesion Test

General properties

Item     Unit     MUAG8 (G200N)
(Under Development)
Total Light Transmittance % 95.6
Haze % 4.5
SCI (Y) Photopic Reflectance % 0.5*
Pencil Hardness(750g load) 3H
Water Contact Angle ° 112
Weatherability (DIN75220 Z-in1) Passed
Infrared Transmittance(λ=940nm) % >90

*Black PET film with black adhesive is laminated on the backside of the specimen.

The above data are typical values and not guaranteed values. The specifications may change without notice.
