Super Active TAWERS

Super Active TAWERS

Super Active Wire Feed Process (S-AWP)

TAWERS



TS/TM/TL Series (GⅢ)



Super Active TAWERS

  • What is Super Active TAWERS?
  • Super Active TAWERS

TAWERS (The robot with integrated welding power source) has evolved further. Contributes to productivity improvement with high-speed welding + ultra-low spatter.

MAX.99 spatter reduction

compared to conventional model (full digital welding machine)

Super Active TAWERS

CO2, SPCC, 3.2 mm plate thickness, 320 A, 110 cm/min, lap joint



450A

Super Active TAWERS HP realizes further high-speed welding and medium-thick plate welding with a high current range of 450A.

Super Active TAWERS

Super Active TAWERS HP



Aluminum

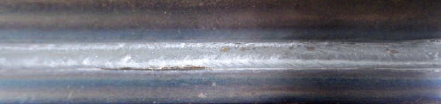

Super Active TAWERS’s very low-spatter performance is applied to aluminum MIG.

  • Super Active TAWERS
  • ・Base metal: A5052
    ・Joint: Fillet
    ・Weld current: 155 A
    ・Weld speed: 60 cm/min
    ・Plate thickness: 3.0 mm
Super Active TAWERS

Super Active TAWERS HP (Aluminum)



HBC (Heat Balance Control) process supports welding of high-tensile steel plates that are becoming thinner.

Example of high tensile steel (980 MPa)

  • Conventional Active TAWERS: Burn-through

    Conventional Active TAWERS: Burn-through
  • Right arrow
  • HBC process: No burn-through

    HBC process: No burn-through

    Joint: Lap
    Gas: MAG
    Weld current: 150 A
    Weld speed: 100 cm/min
    Plate thicknesses: 0.8 mm x 0.8 mm
    Gap: 1 mm



Super Active Wire Feed Process(S-AWP)

Super Active Wire Feed Process

Constant speed wire feed.
Limit in spatter reduction.

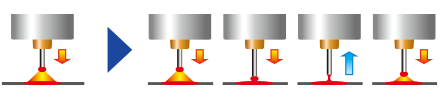

Continuous back and forth wire feed.
Spatter reduction by stable short-arc cycle.

Super Active Wire Feed Process



TAWERS WGⅢ/WGHⅢ

Features of TAWERS

SP-MAGⅡ

Greatly reduces spatter in mixed gas (MAG) welding on thin plates.
Welding waveform control achieves low spatter in short-circuit transfer range.



MTS-CO2

Greatly reduces spatter in mixed gas (MAG) welding on thin plates.
Welding waveform control achieves low spatter in short-circuit transfer range.



HD-Pulse

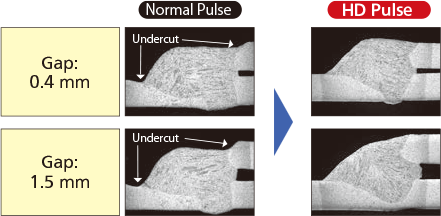

  • Preventing undercuts during high speed welding.
  • Dip (Short circuit) transfer enabling lower heat input with better gap handling capability.
  • Precisely controlled dip timing reducing spatter.



TAWERS TIG

An excellent arc start allows to improve welding quality and reduce cycle time.
Stable filler wire feeding allows to improve welding quality and limit deviation of aiming point.



Mild steel / Stainless (CO2/MAG/MIG)

S-AWP:Super Active Wire Feed Process
HBC:Heat Balance Control
OP:Optional
Series Welding process Rated output current CO2 MAG/MIG Pulse MAG/MIG S-AWP CO2 S-AWP MAG/MIG HBC Zi-Tech function
350 A/
450 A
(HP)
◯ *1 ◯ *2 ◯ *3 OP OP ◯ *4
TAWERS
350 A ◯ *1 ◯ *2 ◯ *3 OP OP OP OP ◯ *4
450 A ◯ *1 ◯ *2 ◯ *3 - - - - ◯ *4
*1:MTS-CO2, *2:SP-MAG, *3:HD-Pulse, *4:Lift Start, Lift End, etc.

Aluminum(MIG)

Series Welding process Rated output current MIG Pulse MIG AC MIG *1 S-AWP MIG HBC function
350 A OP - ◯ *2
350 A OP - ◯ *2
*1:AC MIG system cannot be used in combination with S-AWP Aluminum function. *2:Lift Start, Lift End, etc.

TIG

Series Welding process Rated output current DC AC Arc starting
350 A ◯ *1 - High frequency
350 A ◯ *1 - Touch
*1:High speed TIG



GⅢ

Welding power supply separate robot systems

Combination with Full Digital Welding Power Source Achieves Stable and High Quality Welding.

CO2/MAG

CO2/MAG Welding Machines

CO2/MAG Welding Machines

Product information

MIG

MIG Welding Machines

MIG Welding Machines

Product information

TIG

TIG Welding Machines

TIG Welding Machines

Product information

TIG Lineup

Model Selection Guide

Type

Material

Filler wire dia.

(mm)

Welding power source

Robot

Autogenous

TIG (no filler)

Stainless steel

-

300BZ3

TS-800

TS-950

TM-1100

TM-1400

TL-1800

Stainless steel

Aluminum

-

300BP4

500BP4

Filler TIG

Stainless steel

1.2

300BZ3

TS-800

TS-950

TM-1100

TM-1400

TL-1800

Stainless steel

Aluminum

1.2

300BP4

500BP4

Rotary

filler TIG

Stainless steel

1.2

300BZ3

TL-1800

Stainless steel

Aluminum

1.2

300BP4

500BP4

Notes: An external axis controller is necessary for rotary filler TIG welding.

Mild steel / Stainless (CO2/MAG/MIG)

Series Welding power source Rated output current CO2 MAG/MIG Pulse MAG/MIG
YD-350GZ4 350 A ◯ *1 ◯ *2 -
YD-500GZ4 500 A ◯ *1 ◯ *2 ◯ *3
YD-350VR1 350 A -
YD-400VP1 400 A
YD-500VR1 500 A -
*1:MTS-CO2, *2:SP-MAG, *3:Rated current 400 A

TIG

Series Welding power source Rated output current DC AC Arc starting
YC-300BZ3 300 A - High frequency
YC-300BP4 300 A High frequency
YC-500BP4 500 A High frequency



Manipulator

Manipulator lineup

TS series

Space saving
&
high payload!

Standard

TM series

Torch type selectable to fit your application!

TL series

Long-arm
&
high payload

X

Standard

Separate Type

Superior wire feedability and reduced self-interference

Through-Arm Type

Focused on accessibility to workpieces by preventing interference with the torch cable.

External Type

Focused on wire feedability

Type and Series



LA-1800 (GⅢ, WGⅢ, WGHⅢ)

LA-1800

Medium Type Multi‐purpose Robot
