Low stress Low CTE Ultra-thin IC substrate materials | R-G525T , R-G525F

Low warpage circuit board materials MEGTRON GX R-G525



  1. Realize low warpage at several type of IC package by low stress property

Circuit Board Materials

  • Part Number

Low CTE glass cloth

Laminate R-G525T
Prepreg R-G520T

Normal glass cloth

Laminate R-G525F
Prepreg R-G520F

  • Application
IC substrate
IC substrate


Properties

Low Stress
CTE x, y-axis
3-5ppm/°C
Tg (DMA)
270°C

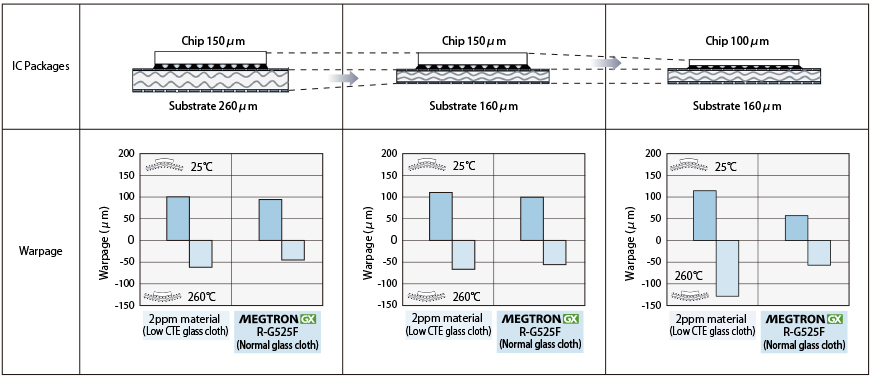

IC packages warpage

IC packages warpage

General properties

Item Test method Condition Unit MEGTRON GX
R-G525T
Low CTE glass cloth
MEGTRON GX
R-G525F
Normal glass cloth
Glass transition temp.(Tg) DMA*2 A °C 270 270
Thermal decomposition temp.(Td) TGA A °C 365 365
CTE x-axis α1 Internal method A ppm/°C 3-5 5-7
CTE y-axis 3-5 5-7
Flexural modulus*1 Warp JIS C 6481 25°C GPa 20 17
Fill 19 16

The sample thickness is 0.1 mm.
*1 0.8mm
*2 Measurement in tensile mode

Our Halogen-free materials are based on JPCA-ES-01-2003 standard and others.
Contain; Chlorine:≤0.09wt%(900ppm), Bromine:≤0.09wt%(900ppm),
Chlorine+Bromine:≤0.15wt%(1500ppm)

The above data are typical values and not guaranteed values.
