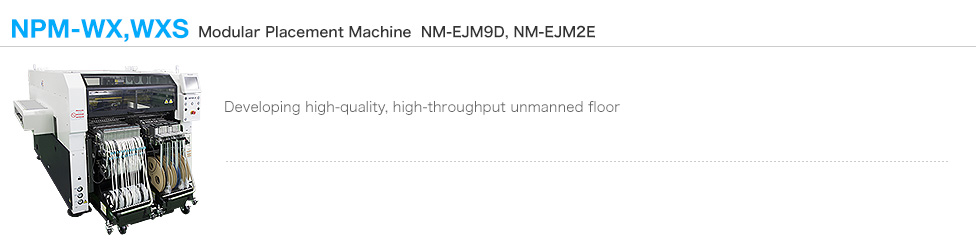

NPM-WX,WXS

Modular Placement Machine NPM-WX,WXS (NM-EJM9D/NM-EJM2E)

Panasonic's next generation of mounting production (X series) concept
“Smart manufacturing"

More line throughput, better quality and lower cost with fully automated mounting system floor

Features

Stable operation based on the autonomic function - Autonomous line control
APC system and automatic recovery option

Labor-saving, improved utilization - Concentrated control
Floor management system and remote operation option

Reduced work variations - Navigation/automated items
Feeder setup navigation, component supply navigation and automated items

Image of Smart manufacturing

Machine configuration
NPM-WX / NPM-WXS

Supply unit layout

Layout 1 Layout 2 Layout 3 Layout 4 Layout 5
8 mm
taping : 120
Tray : 0
8 mm
taping : 136
Tray : 0
8 mm
taping : 94
Tray : 24
8 mm
taping : 102
Tray : 24
8 mm
taping : 68
Tray : 48
Front : TF30 / Rear : TF30 Front : TF17×2 / Rear : TF17×2 Front : TF30 / Rear : TF17+Tray Front : TF17×2 / Rear : TF17+Tray Front : TF17+Tray / Rear : TF17+Tray

Specification
Model ID NPM-WX NPM-WXS
Model No. NM-EJM9D NM-EJM2E

PCB
dimensions
(mm)

Single-lane mode Batch mounting : L 50 × W 50 ~ L 750 × W 610
2-position mounting : L 50 × W 50 ~ L 350 × W 610
Dual-lane mode Dual transfer (Batch) : L 50 × W 50 ~ L 750 × W 300
Dual transfer (2-position) : L50 × W 50 ~ L 350 × W 300
Single transfer (Batch) : L 50 × W 50 ~ L 750 × W 590
Single transfer (2-position) : L50 × W 50 ~ L 350 × W 590
Electric source 3-phase AC 200, 220, 380, 400, 420, 480 V 3.0 kVA 3-phase AC 200, 220, 380, 400, 420, 480 V 2.1 kVA
Pneumatic source *1 Min.0.5 MPa、200 L /min (A.N.R.)
Dimensions (mm) W 1 410 *2 × D 2 570 *3 × H 1 444 *4
Mass 2 740 kg
(Only for main body : This differs depending on the option configuration.)
2 660kg
(Only for main body : This differs depending on the option configuration.)
Placement head 1 head on each side (front, rear) 1 head (rear camera is optional)
Component
supply
Taping Tape : 4 ~ 56 / 72 / 88 / 104 mm
Front rear 17-slot feeder cart specifications : Max. 136 product types (4, 8mm tape)
Stick Front rear 17-slot feeder cart specifications :
Max. 32 product types (single stick feeder)
Front rear 17-slot feeder cart specifications :
Max. 16 product types *5 (single stick feeder)
Tray One side tray specifications : Max.24, Front-rear tray specifications : Max.48
Placement head Lightweight
16-nozzle head V2
(Per head)
Lightweight
8-nozzle head
(Per head)
4-nozzle head
(Per head)
3-nozzle head V2
(Per head)
Max. speed 43 000 cph
(0.084 s / chip)
23 000 cph
(0.155 s / chip)
8 400 cph
(0.429 s / chip)
7 800 cph
(0.462 s / QFP feeder)
7 100 cph
(0.507 s / QFP tray) *8
9 400 cph
(0.383 s / chip)
7 300 cph
(0.493 s / QFP feeder)
6 350 cph
(0.567 s / QFP tray) *9
Placement accuracy
(Cpk≧1)
±25 μm/ chip ±25 μm/ chip
±40 μm/QFP 12 mm Under
±25 μm/QFP 12 mm ~ 32 mm
±20 μm/ QFP ±20 μm/ QFP
Component dimensions
(mm)
0201 chip *6*7 / 03015 chip *6
0402 chip *6 ~ L 6 × W 6 × T 3
0402 chip *6 ~ L 45 × W 45 × T 12 or L 100 × W 40 × T 12 0603 chip ~ L 120 × W 90 × T 40 or L 150 × W 25 × T 40 0603 chip ~ L 120 × W 90 × T 40 or L 150 × W 25 × T 40
*1 : Only for main body
*2 : 2 010 mm in width if extension conveyors (300 mm) are placed on both sides.
*3 : Dimension D including feeder cart
*4 : Excluding the monitor, signal tower and ceiling fan cover.
*5 : Stick feeders cannot be used on the rear feeder cart of NPM-WXS.
*6 : 0201/03015/0402 component requires a specific nozzle/tape feeder.
*7 : 0201 component placement is optional. (Under conditions specified by Panasonic)
*8 : For any QFP 20 mm or less in size
*9 : For any QFP 28 mm or less in size
* Placement tact time and accuracy values may differ slightly depending on conditions.
* Please refer to the specification booklet for details.
