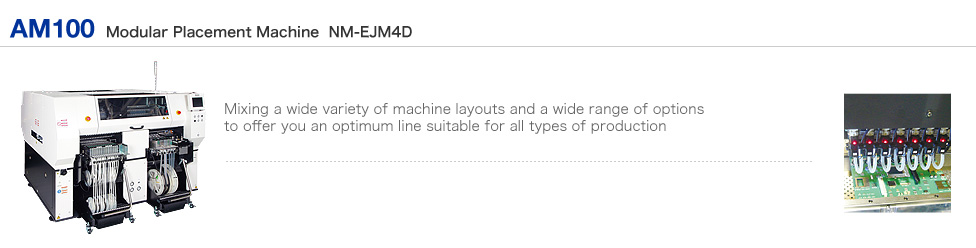

AM100

AM100
Features

One-machine solution for the pursuit of net productivity and high versatility
Equipped with 14 nozzle head that balances productivity and versatility.
Program creation using the data creation system (NPM-DGS)
Panasert data conversion tool is installed in NPM-DGS as standard
Improved operability : Loading of Autoload feeder
Feeders are compatible with CM / NPM
Feeder supply unit* Max. 160
*Select either the fixed feeder base or feeder cart
“No supply unit"is selectable for the rear side.

Part adaptability

LED Placement
Brightness Binning

High productivity
High productivity/Automatic changeover option
Off-line setup support station
Feeder setup navigator option
Operating rate improvement/Parts supply navigator option

Quality improvement
APC system
Placement height control
Automatic support pin replacement
Component Verification option
Mounting MES software (PanaCIM-EE Gen2)
Automation reduces labor and helps improve quality

Equipped with 14 nozzle head that balances productivity and versatility.
-Placing components (up to 14 mm) *1 in the maximum speed.*2

Components ranges from 0402 to 120 × 90 (mm) or 150 × 25 (mm)

*1 : for □14 mm-square size components

*2 : The optimal tact time may not achieved due to the weight of component or the surface material of component.

Improved operability
Loading of Autoload feeder

Autoload feeder

“No supply unit"is selectable for the rear side.

(For details, please contact with our sales representative.)

*3 : The measurements indicate the size of the machine with the feeder carts in front and rear

Program creation using the data creation system (NPM-DGS)
Panasert data conversion tool is installed in NPM-DGS as standard

Feeders are compatible with CM / NPM

Tape feeder / Vibratory stick feeder (Single,3-slots) / Multi-function Transfer Unit

Feeder supply unit*4 Max. 160

(For the double tape feeder : Max.80)

*4 : Select either the fixed feeder base or feeder cart

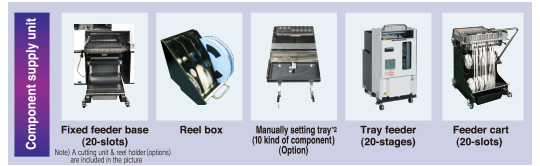

Machine layout

*1 : When you select supply units for a machine, the fixed feeder base cannot be mixed with the feeder cart in the machine.
*2 : The Manually setting tray is only installable on the rear fixed feeder base (one on each side).
*3 : Please consult our sales representative.
*The above illustration is an example of machine layout.

Wide range of options

Versatility

  • Fixed feeder base options
    (1) Manually setting tray
    (2) Reel box
    (3) Cutting unit & reel holder
  • Multi-functional transfer unit
  • Grip nozzle
  • Rear side nozzle changer
  • Rear side operation panel
  • Chip thickness camera (front side only)
  • Rear side camera
    (line camera or 3D sensor)
  • Lateral illumination

High productivity

  • Automatic changeover
  • Support station
  • Feeder setup navigation
  • Parts supply navigation

Quality improvement

  • APC system
  • Height sensor (placement height control)
  • Automatic replacement of support pins
  • Component verification
  • PanaCIM-EE ready

Specfication
Model ID AM100
Model No. NM-EJM4D
PCB dimensions (mm) L 50 × W 50 to L 510 × W 460
Placement speed 35 800 cph (0.1006 s/chip),
12 200 cph (0.295 s/QFP 12 mm or less)
Placement accuracy (Cpk1) ±40 µm/chip
±50 µm/QFP 12 mm or less
±30 µm/QFP 12 mm over to 32 mm or less
Component supply Taping Tape4 ~ 56 / 72 / 88 / 104 mm
Tape feeder specification : Max. 160 (Tape : 4 / 8 mm tape (small reel) )
Tray feeder specification : Max. 120 *1
Stick
Tape feeder specification : Max. 40 (Single stick feeder)
Tray feeder specification : Max. 30 *1
Tray Tray feeder specification: Max. 20 *1
Manually setting tray specification: Max. 20 *2 (Option for the fixed feeder base)
Component dimensions (mm) 0402 chip *3 to L 120 × W 90 or L 150 × W 25 (T=28 *4)
PCB exchange time 4.0 s (where there is no placement component on the rear side)
Electric source 3-phase AC 200 / 220 V ±10 V, AC 380 / 400 / 420 / 480 V ±20 V 2.0 kVA
Pneumatic source Min.0.5 MPa to Max.0.8 MPa, 200 L /min (A.N.R.)
Dimensions (mm) W 1 970 × D 2 019 *5 × H 1 500 *6
Mass 2 650 kg *7
*1 :  in case of Single tray
*2 :  When installed on both sides of the rear fixed feeder base.
*3 :  The 0402 chip requires a specific nozzle/feeder. 0402 mounting compatibility is optional.
*4 :  For components with a height of 25 mm or more, a dedicated nozzle is required.
*5 :  The D measurement indicates the size of the machine with the fixed feeder bases in the front and rear.
For front and rear feeder cart specifications,D measures 2282 mm and, with the tray feeder connected (front sidefixed feeder base), 2105 mm.
*6 :  The signal tower and touch panel are not included.
*7 :  The machine body plus 4 fixed feeder bases (varies depending on the machine layout).
* Values such as maximum speed and placement accuracy may vary depending on operating conditions.
* Please refer to the ‘‘Specification booklet'' for details.
